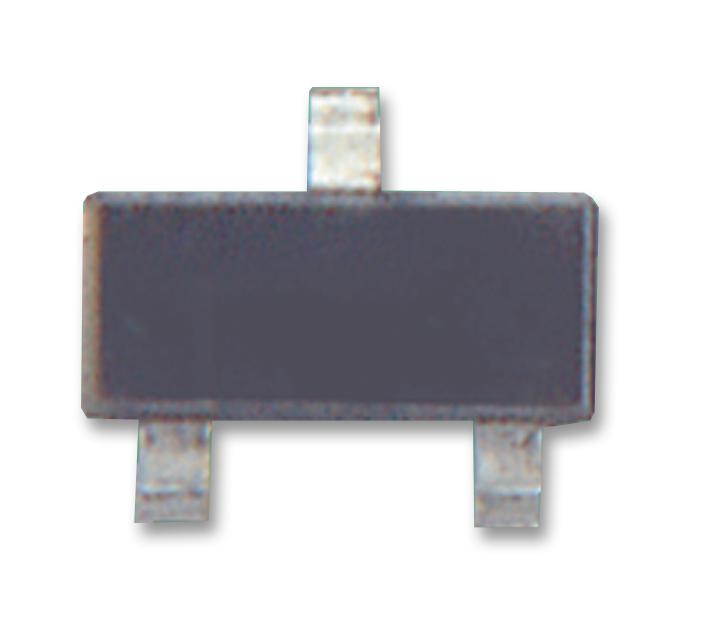

DIODES INC. ZXCT1009FTA High-Side Current Monitor
The ZXCT1009F is a high-side current sense monitor packaged in a 3-pin SOT-23 form factor. It measures load current by sensing the high-side voltage across a shunt resistor and converts it into a proportional output current. An external resistor scales this output current into a ground-referenced voltage. It offers accurate, low-cost high-side current sensing with a sense voltage up to 2.5V and a supply voltage range from 2.5V to 20V. Featuring a quiescent current of 4µA, it operates over -40°C to 85°C, making it ideal for motor control, power management, and sensing applications.
DIODES INC. ZXCT1009FTA High-Side Current Monitor Specifications:
- Supply Voltage Range: 2.5V to 20V
- Sense Voltage: up to 2.5V
- Output Current: approximately 9.98mA at 1V sense voltage
- Quiescent Current: 4µA
- Operating Temperature: -40°C to 85°C
- Absolute Max Voltage on pins: -0.6 to 20V
- Continuous Output Current: 25mA
- Package: SOT-23
- Dissipation: 450mW at 25°C; SM8 package: 2W
- Bandwidth: 2MHz at 100mV sense voltage
- Accuracy: 1%
- Voltage on sense inputs: 0 to 5V
- Storage Temperature: -55°C to 125°C
Buy the Diodes ZXCT1009 – Reliable High-Side Current Monitor for Industrial Applications
Purchase the Diodes ZXCT1009 high-side current monitor online today and enjoy precise current sensing for power management, motor control, and instrumentation. Compact and efficient, it features a 1% typical accuracy, a wide supply voltage range from 2.5V to 20V, and a sense voltage up to 2.5V. Its low quiescent current of 4µA makes it suitable for battery-powered devices and portable systems. The SOT-23 package ensures easy integration into various applications, offering excellent performance and reliability for engineers and designers seeking accurate current measurement solutions.
Buy Diodes ZXCT1009 now and experience unmatched reliability and performance for high-side current sensing needs in industrial and electronic applications.
