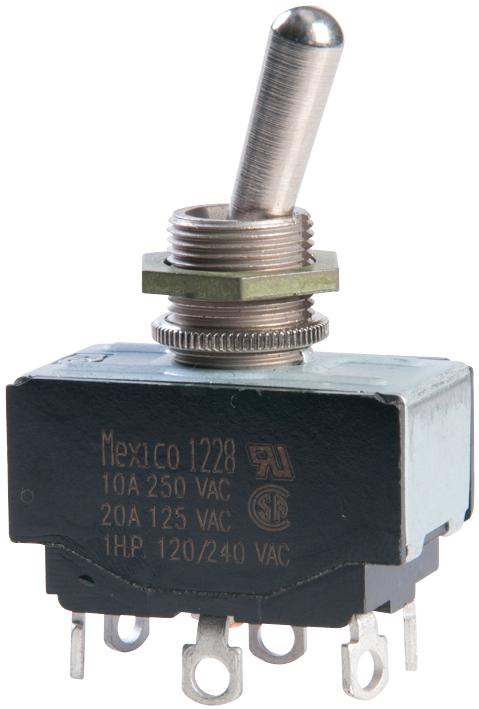

Eaton Electronics 7803K12 Datasheet & Stock
The 7800 series general-purpose toggle switch features a wide range of options and flexible design suitable for various applications. It is available with solder lugs, screw terminals, or 0.25-inch spade terminals. The Combi-Term option extends its versatility by allowing screw terminals, quick-connect, or solder termination options in a single switch. The switch supports three independent ON circuits, available in 2PDT or 4PDT configurations, and is assembled with hardware included. Additional features include reversing jumpers (not compatible with three independent ON circuits), a rotate keyway of 180°, a silicone lever seal (for 1P and 2P models), and the ability to omit one pole in 2P, 3P, or 4P configurations (not for use with three independent ON circuits). It offers maintained and momentary contact options, with circuit configurations including 1PST, 1PDT, 2PST, 2PDT, 3PST, 3PDT, 4PST, and 4PDT. Suitable for industrial applications.
Frequently Asked Questions
Where can I buy Eaton Electronics 7803K12?
You can click on the BUY or RFQ button to purchase 7803K12 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7803K12?
You can download the 7803K12 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7803K12?
Eaton Electronics
