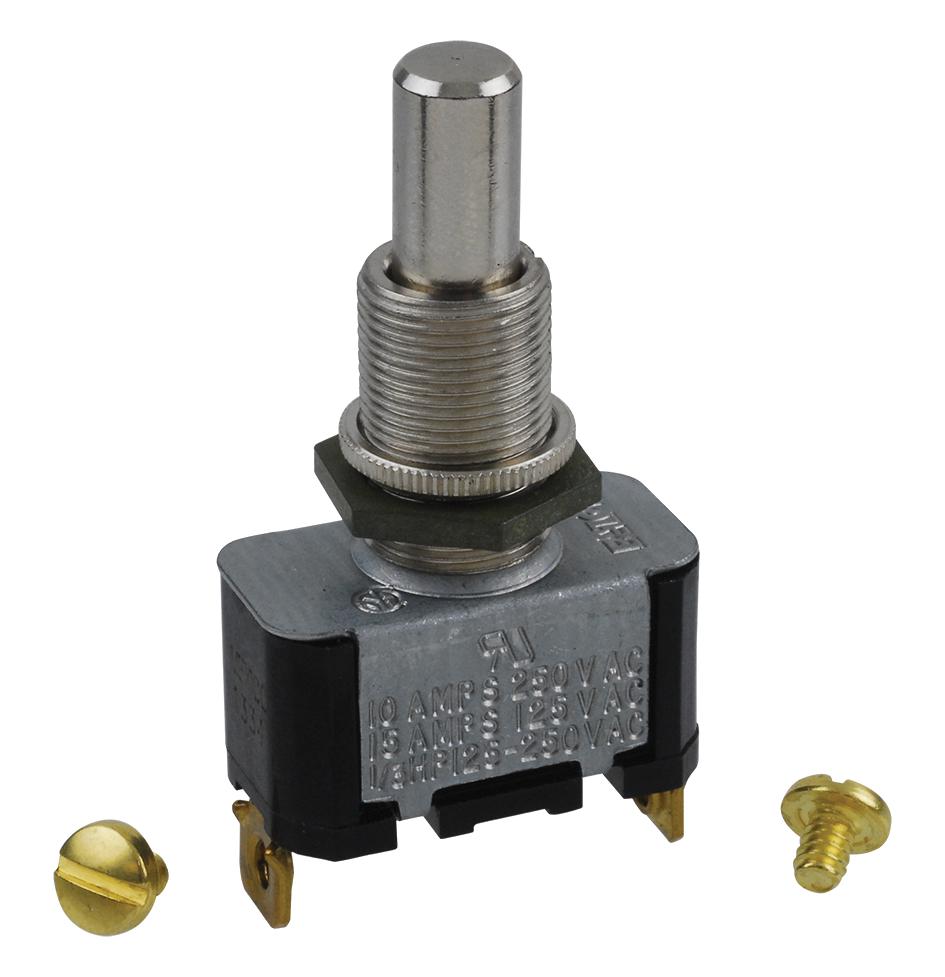

Eaton Electronics 8444K3 Medium-duty Pushbutton Switch
The 8444K3 is a non-illuminated, momentary pushbutton switch featuring screw terminals. Designed for general-purpose applications, it is rated for AC current, suitable for medium-duty use, and mounts using a single hole. The switch requires a maximum operating force of 0.9 pounds and is ideal for industrial environments.
Eaton Electronics 8444K3 Medium-duty Pushbutton Switch Specifications:
- Ratings: 15A, 125 Vac; 10A, 250 Vac
- Contact Material: Silver-plated copper
- Wire Leads: 18 gauge, 6 in (152 mm) long
- Mounting: One-hole threaded bushing, 0.468 in dia., 32 threads/inch
- Keyway: 0.080 W x 0.040 D in
- Operating Temperature Range: -17.8°C to +65.6°C
- Button Travel to Make Contact: 0.090 in
- Button Dimensions: 0.460 in Dia.
- Force: 0.9 lbs
- Construction: Metal with screw terminals
- Dimensions: Main body diameter 0.460 in, height (including terminals) approx. 0.850 in
- Standards: UL Recognized, CSA Certified
Buy the Eaton Series 8444 AC Switch: 8444K3
Enhance your industrial control panel with the Eaton medium-duty AC rated pushbutton switch. Featuring screw terminals, robust metal construction, and reliable operation, this switch is perfect for a wide range of automation and instrumentation applications. Its compact design includes a 0.460-inch diameter button, maximum operating force of 0.9 pounds, and a simple one-hole mounting method. Sourced from trusted standards, the Eaton 8444K3 offers durability, consistent performance, and easy online purchasing for your maintenance or new installations.
Buy Eaton 8444K3 now and experience unmatched reliability, durability, and ease of installation for industrial and control applications.
