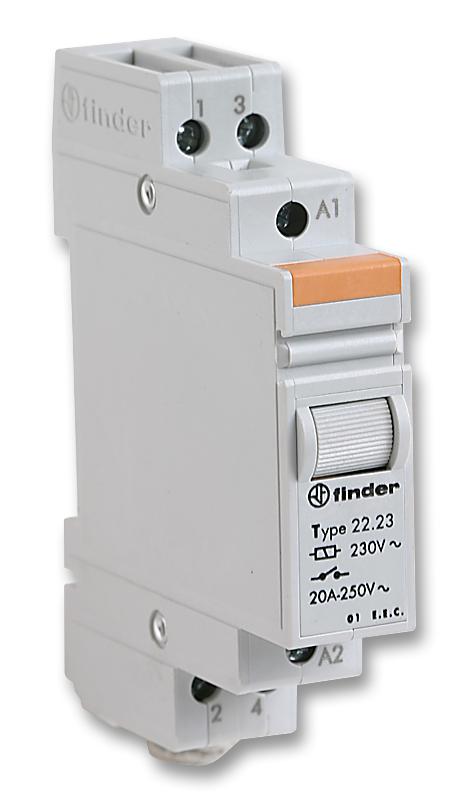

FINDER 222380244000 Power Relay
This power relay features a versatile contact configuration with one normally closed and one normally open contact, rated for 20A at 250V AC. Equipped with a 24V AC coil, it offers reliable switching with AgSnO₂ contacts designed for high inrush currents and resistive loads. The relay includes mechanical and LED indicators, reinforced insulation, and a compact 35 mm rail-mountable design. Suitable for industrial automation, control panels, and load switching applications demanding durability and precise operation in electrical systems.
FINDER 222380244000 Power Relay Specifications:
- Rated current: 20A at 250V AC
- Contact configuration: 1 NC + 1 NO
- Coil voltage: 24V AC
- Contact material: AgSnO₂ (Silver Tin Oxide)
- Contact gap: 3 mm for NO, > 1.5 mm for NC
- Rated load: 6,250 VA (AC1 / AC7a)
- Electrical life: 30 million cycles at rated load
- Mechanical life: 2 million cycles
- Operate time: 30 ms, Release time: 20 ms
- Insulation: Reinforced between coil and contacts
- Protection: IP20
- Mounting: 35 mm rail (EN 60715)
- Ambient temperature: -20°C to +50°C
- Dielectric strength: 6 kV between coil and contacts
- Short circuit current: 3 kA
- Rated impulse voltage: 6 kV
- Wire connection: Screw terminals, max wire size 1x6/2x4 mm²
Buy the Findernet Series Modular Power Relay: 222380244000
Purchase the Findernet power relay with 20A rated current and 24V AC coil online today. Designed with AgSnO₂ contacts for high inrush and resistive loads, it features reinforced insulation, LED indicators, and a compact rail-mountable design. Perfect for automation, control panels, and load switching in demanding electrical environments. Enjoy fast shipping and guaranteed quality when you buy this durable relay directly from our online store, ensuring your projects stay on schedule and operate reliably.
Get Findernet 222380244000 power relay today—built for high current loads and reliable operation in industrial automation.
Frequently Asked Questions
Where can I buy FINDER 222380244000?
You can click on the BUY or RFQ button to purchase 222380244000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 222380244000?
You can download the 222380244000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 222380244000?
FINDER
