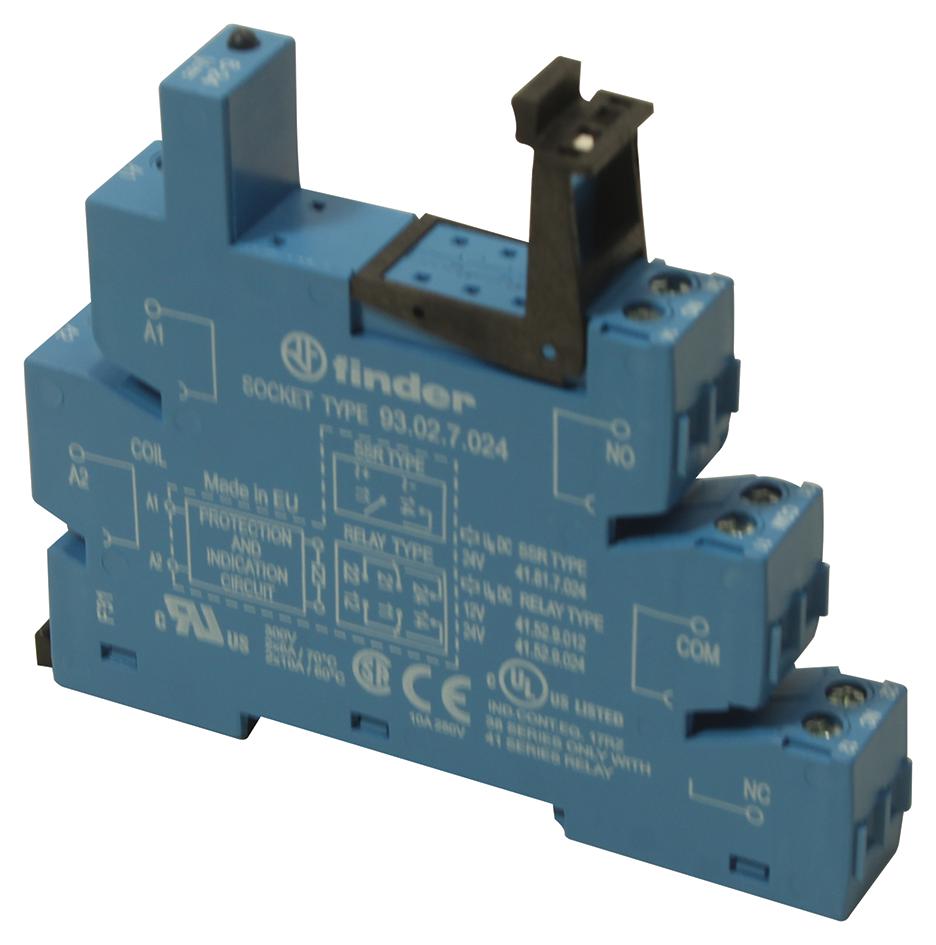

FINDER 93027024 Relay Socket
The 93.02.7.024 is an 8-pin relay socket with screw terminals designed for DIN rail mounting, compatible with relays like 41.52 and 41.61 series. It features dielectric strength of 6kV between coil and contacts, IP20 protection, and operates in temperatures from -40°C to 70°C. Including accessories such as an 8-way jumper link, plastic separator, and marker tags, it provides reliable connection and isolation for industrial relay applications, ensuring secure mounting and safe operation for various electromechanical or solid state relays in automation systems.
FINDER 93027024 Relay Socket Specifications:
- Number of pins: 8
- Mounting: DIN rail
- Connection: Screw terminals
- Dielectric strength: 6 kV (1.2/50 ps) between coil and contacts
- Protection category: IP20
- Ambient temperature range: -40°C to +70°C
- Compatible relay series: 41.52, 41.61, 41.81
- Max wire size: 1x2.5 mm² or 1x14 AWG
- Rated voltage: 250 V AC/DC
- Insulation: Reinforced (8 mm or 10 mm depending on relay type)
- Accessories included: 8-way jumper link, plastic separator, marker tags
- Approval: CE, FAL, GS, WIS
- Max current: 10 A
Buy the Findenet Series 41 Relay Socket: 93027024
Enhance your automation setups with the Findenet Series41 relay socket 93027024. Designed for DIN rail mounting with screw terminals, it offers 6kV dielectric strength, IP20 protection, and operates safely within -40°C to 70°C. Compatible with various relays like 41.52 and 41.61 series, this socket includes essential accessories such as jumper links, separators, and marker tags for quick installation. Ideal for industrial, control, and automation applications, ensuring reliable connections and long service life.
Order your Findenet Series41 relay socket 93027024 today and ensure secure, reliable relay connections for industrial automation projects.
Frequently Asked Questions
Where can I buy FINDER 93027024?
You can click on the BUY or RFQ button to purchase 93027024 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 93027024?
You can download the 93027024 datasheet or visit the FINDER website for support.
Who is the manufacturer of 93027024?
FINDER
