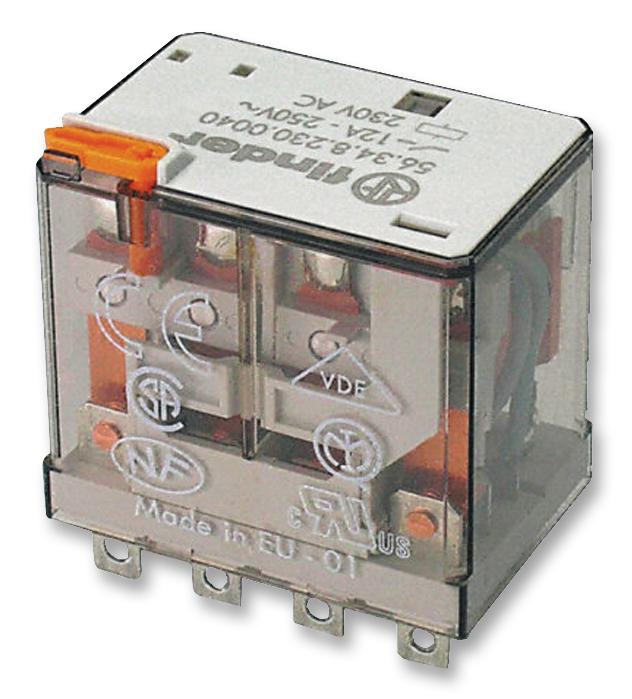

FINDER 563482300000 Power Relay
This miniature power relay supports 12A current capacity with plug-in and PCB mount options. Features include AC and DC coils, cadmium-free contacts, contact material options, and coil EMC suppression. Available with lockable test buttons and mechanical flags, the relay is designed for reliable switching in automation and control systems. It also offers flange and rail mount accessories, high dielectric strength, and environmental protection suitable for industrial environments. Its robust construction and diverse configurations make it ideal for various switching applications, including motor control and load management, ensuring durability and precision in demanding conditions.
FINDER 563482300000 Power Relay Specifications:
- Contact configuration: 2 CO (DPDT), 4 CO (4PDT), 2 NO (DPST-NO) with > 1.5 mm gap
- Rated current/Maximum peak current: 12/20 A
- Rated switching voltage: 250/400 VAC
- Rated load: 3000 VA
- Rated load AC15: 700 VA at 230 V AC
- Single phase motor rating: 0.55 kW
- Breaking capacity DC1: 30/110/220 V, 12/0.5/0.25 A
- Operate/release time: 8/3 ms (AC), 10/4 ms (DC)
- Insulation between coil and contacts: 4-5 kV
- Dielectric strength between open contacts: 1000-2000 VAC
- Ambient temperature range: -40°C to +70°C
- Environmental protection: RTI (wash tight)
- Coil voltages: 6-12-24-48-60-110-120-230-240-400 V AC/DC
- Rated coil power: 15 VA (AC), 2-13 W (DC)
- Coil operating range: 0.8...1.1 Un
- Drop-out voltage: 0.2 Un (AC/DC)
- Mechanical life: 20-50 million cycles
- Electrical life at rated load: 100,000-1,000,000 cycles
- Approvals: UL, CE, RINA
- Protection category: IP 20
Buy the Buy Finder 12A Power Relay Part Number 563482300000 Online
Order the Finder Power Relay supporting 12A capacity today for reliable performance in automation and control systems. Designed with diverse configurations including AC and DC coils, cadmium-free contacts, and various mounting options, this relay ensures durability and efficiency. Its high dielectric strength and environmental protection ratings make it suitable for demanding industrial environments. Featuring a wide voltage range, quick operate/release times, and UL, CE approvals, this relay is ideal for motor control, load switching, and automation tasks. Purchase online now for fast delivery and exceptional quality.
Get Finder 563482300000 today—built for precision and long-lasting durability in industrial control applications.
Frequently Asked Questions
Where can I buy FINDER 563482300000?
You can click on the BUY or RFQ button to purchase 563482300000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 563482300000?
You can download the 563482300000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 563482300000?
FINDER
