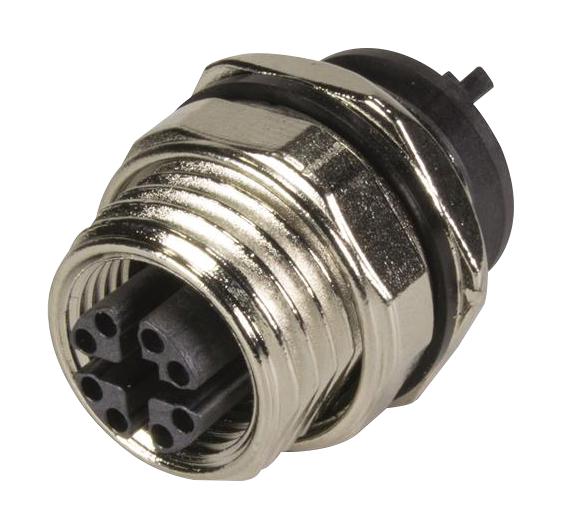

Harting 21033812809 M12 CAT5 Straight Connector
The HARTING 21 03 381 2809 is a robust M12 CAT5 circular connector designed for reliable data transmission in industrial applications. This connector offers a straight configuration, THR (Reflow soldering termination) for PCB mounting, and robust screw locking. Its shielded design and IP67 protection rating ensure reliable performance in harsh environments. The connector supports up to 100 MHz data transmission and is suitable for applications requiring high-speed data connectivity and durability.
Harting 21033812809 M12 CAT5 Straight Connector Specifications:
- Part Number: 21 03 381 2809
- Specification: M12 CAT5 Bu gerade HWM
- Series: Circular connectors M12
- Element: PCB adapter
- Description of hood/housing: 9 mm
- Termination method: Reflow soldering termination (THR/SMC)
- Gender: Female
- Locking type: Screw locking
- Shielding: Shielded
- Number of contacts: 8
- Coding: X-coding
- Rated current: 0.5 A
- Rated voltage: 50 V
- Rated impulse voltage: 0.8 kV
- Pollution degree: 3
- Insulation resistance: > 108Ω
- Contact resistance: ≤10 mΩ
- Ambient temperature: -40 ... +85 °C
- Mating cycles: ≥100
- Degree of protection: IP67
- Transmission characteristics: Cat. 5 Class D up to 100 MHz
- Overvoltage category: III
- Isolation group: I (600 ≤ CTI)
- Material (insert): LCP
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- Material (hood/housing): Zinc die-cast
- RoHS: compliant with exemption
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Specifications: IEC 61076-2-109
- UL 1977 ECBT2.E102079: UL 1977 ECBT2.E102079
- CSA-C22.2 No. 182.3 ECBT8.E102079: CSA-C22.2 No. 182.3 ECBT8.E102079
- Packaging size: 60
- Net weight: 18.7 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440402 PCB connector
