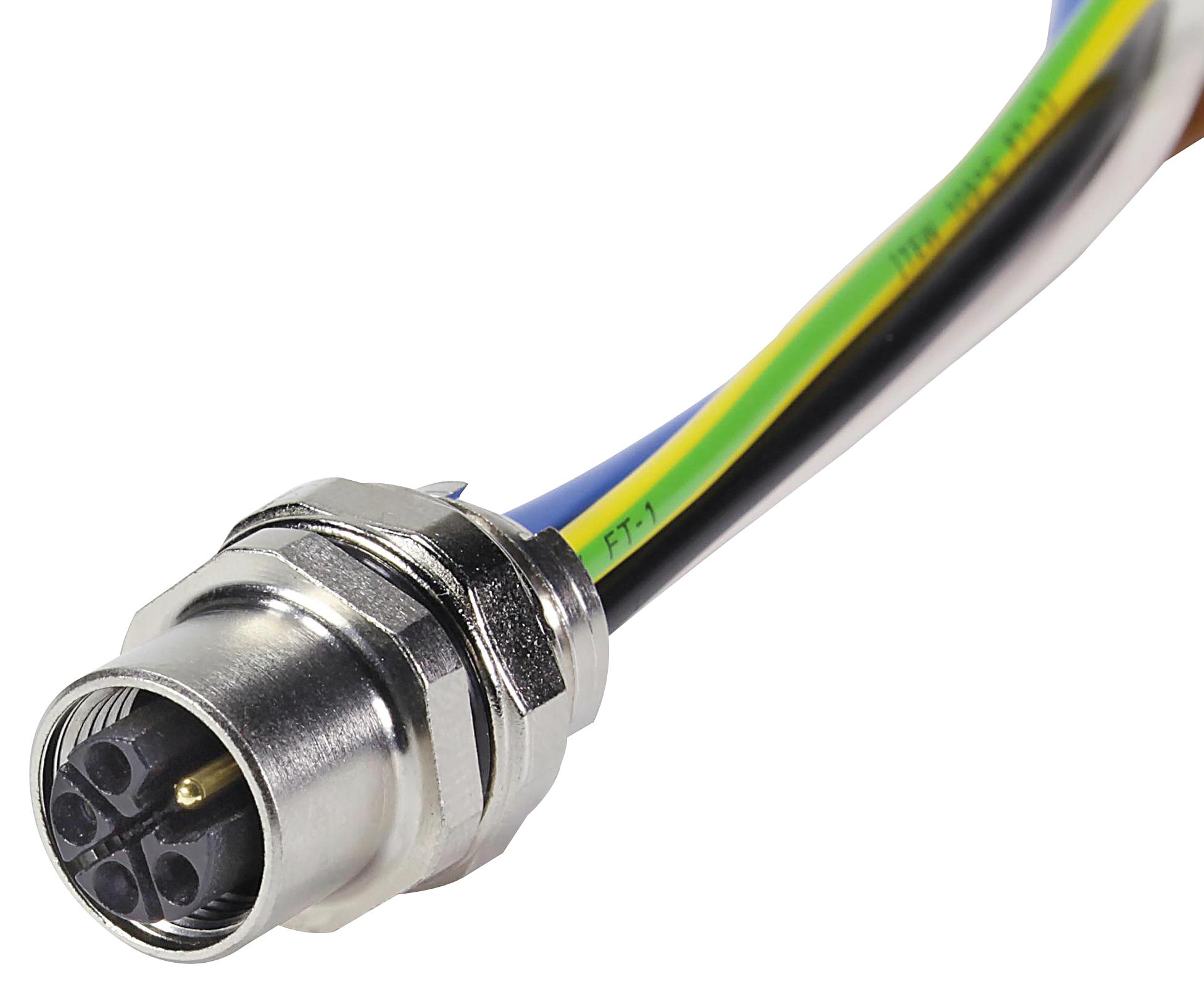

Harting 21035962505 Circular connector
The PFT female L-coded connector is a unshielded circular connector suitable for industrial automation and sensor technology applications. It features 5 contacts including 4 power and 1 special contact, rated for 16A and 63V, with a conductor cross-section of 1.5mm² (AWG 16). Made of durable materials like zinc die-cast housing and copper alloy contacts with gold over nickel plating, it provides IP65/IP67 protection, with a grounding screw locking mechanism and a maximum of 2100 mating cycles. Designed for robust electrical performance in harsh environments, it ensures reliable connectivity and long-term operational stability.
Harting 21035962505 Circular connector Specifications:
- Contacts: 5 (4 power, 1 special)
- Rated current: 16A
- Rated voltage: 63V
- Conductor cross-section: 1.5 mm² (AWG 16)
- Contact resistance: 30 mΩ
- Pollution degree: 3
- Overvoltage category: Ui 63V
- Tightening torque: 2 Nm
- Wrench size: 17 mm
- Temperature range: -40°C to +85°C
- Degree of protection: IP65/IP67
- Material: Zinc die-cast housing, copper alloy contacts, polyamide insulator
- Surface: Au over Ni on contacts
- Locking type: Screw lock
- Number of mating cycles: 2100
- Certifications: UL, CSA, PROFINET compliant
Buy the Buy HARTING Connector Part Number 21035962505 Online
Experience reliable and durable industrial connectivity with the HARTING circular connector. Featuring 5 contacts rated at 16A and 63V, it is designed for harsh environments with IP65/IP67 protection. Made from zinc die-cast and copper alloy, it offers excellent corrosion resistance and long-term stability. With a maximum of 2100 mating cycles and compliant with UL, CSA, and PROFINET standards, this connector ensures robust electrical performance and easy installation for sensor-actuator and automation applications. Perfect for industrial environments needing secure, high-quality connections.
Get HARTING 21035962505 today—built for dependable connectivity in industrial environments with long-lasting electrical performance.
Frequently Asked Questions
Where can I buy Harting 21035962505?
You can click on the BUY or RFQ button to purchase 21035962505 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21035962505?
You can download the 21035962505 datasheet or visit the Harting website for support.
Who is the manufacturer of 21035962505?
Harting
