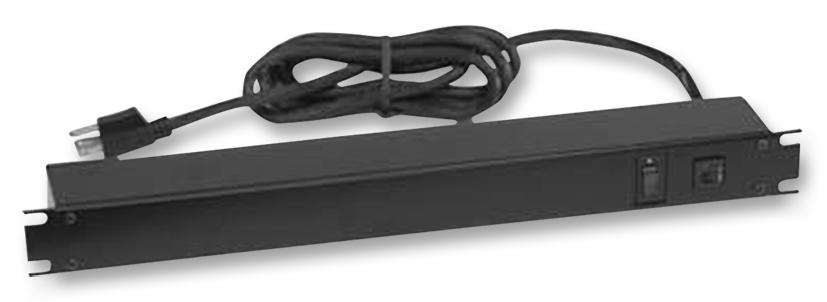

Hammond Manufacturing 1583H6B1 Power Distribution Strip
This power distribution strip is designed for industrial applications, providing multiple outlets with safety features like circuit breakers and optional surge protection. It features front and rear-mounted receptacles, a durable 14/3 SJT power cord rated for extreme temperatures, and NEMA 5-15P straight blade or L5-15P locking plugs. Its rugged construction includes a 1U horizontal rackmount design, heavy-duty components, and certifications such as CSA and UL recognition. Ideal for managing power loads reliably and safely in industrial or data center environments.
Hammond Manufacturing 1583H6B1 Power Distribution Strip Specifications:
- Overall Dimensions: Height 1.72 inches, Width 19.00 inches, Depth 2.66 inches
- Number of Outlets: 6
- Outlet Type: NEMA 5-15R, Locking L5-15P options available
- Power Cord: 14/3 SJT, 6 ft or 15 ft lengths, Heavy-duty
- Circuit Breaker: 15 Amp, 125 VAC
- Plug Types: NEMA 5-15P or NEMA L5-15P locking
- Certification: CSA and UL recognized
- Finish: Black or ASA 61 grey powder coat
- Design: 1U horizontal rackmount, front and/or rear mounted receptacles
- Features: Lighted on/off switch, optional surge protection
Buy the Hammond Series 1533 Power Distribution: 1583H6B1
Order Hammond Series 1533 power distribution strip with 6 outlets designed for industrial environments. Features include a 15 Amp circuit breaker, optional surge protection, and NEMA 5-15 and L5-15P plugs. Its rugged 1U rackmount design allows horizontal installation in server racks or industrial panels. The heavy-duty 14/3 SJT cord ensures safe operation across temperature ranges. CSA and UL certifications guarantee compliance. Reliable, durable, and suitable for power management in manufacturing, data centers, or industrial automation applications.
Get Hammond Series 1533 power distribution strip with 6 outlets today—built for industrial-grade reliability and long-lasting performance.
