INFINEON BGS18MA14E6327XTSA1 RF Switch
This MIPI 2.0 SP8T switch by Infineon is optimized for LTE, WCDMA, and TDCDMA applications, supporting frequencies up to 3.8GHz. It features ultra-low insertion loss, high port-to-port isolation, and no external decoupling capacitors are needed unless DC voltage is applied to RF lines. Its small 2.0mm x 2.0mm package and compatibility with the MIPI RFFE standard make it suitable for multimode handheld devices, providing broad application coverage, high RF performance, and robust electromagnetic compatibility for reliable cellular and wireless communications.
INFINEON BGS18MA14E6327XTSA1 RF Switch Specifications:
- Frequency Range: 0.1 - 3.8 GHz
- Package Size: 2.0 mm x 2.0 mm with +50 um deviation in each dimension
- Package Height: max 0.65 mm
- Insertion Loss: 0.30-0.40 dB (698-960 MHz), 0.35-0.55 dB (1428-1920 MHz), 0.40-0.65 dB (1990-2170 MHz), 0.50-0.70 dB (2170-2690 MHz), 0.67-0.95 dB (3400-3600 MHz), 0.70-1.00 dB (3600-3800 MHz)
- Isolation: up to 45 dB at 698-960 MHz, 37 dB at 1428-1920 MHz, 35 dB at 1990-2170 MHz, 30-50 dB in other bands
- Return Loss: 19-23 dB (698-960 MHz), 7-16 dB (1428-1920 MHz), 12-16 dB (1990-2170 MHz), 10-15 dB (3600-3800 MHz)
- Power Supply Voltage: Vop 0.5 - 3.9 V, Vio 0.5 - 2.5 V
- RF Input Power: up to 35 dBm (short momentary, 50Ω)
- ESD Capability: CDM ±500 V, HBM ±1 kV, RF port ±8 kV
- Junction Temperature: up to 125°C
- Supports RF control via MIPI RFFE version 2.0 with features like register read/write, trigger support, and reset functions
- Suitable for LTE uplink/downlink, multimode handsets, and cellular infrastructure, with RoHS and WEEE compliance

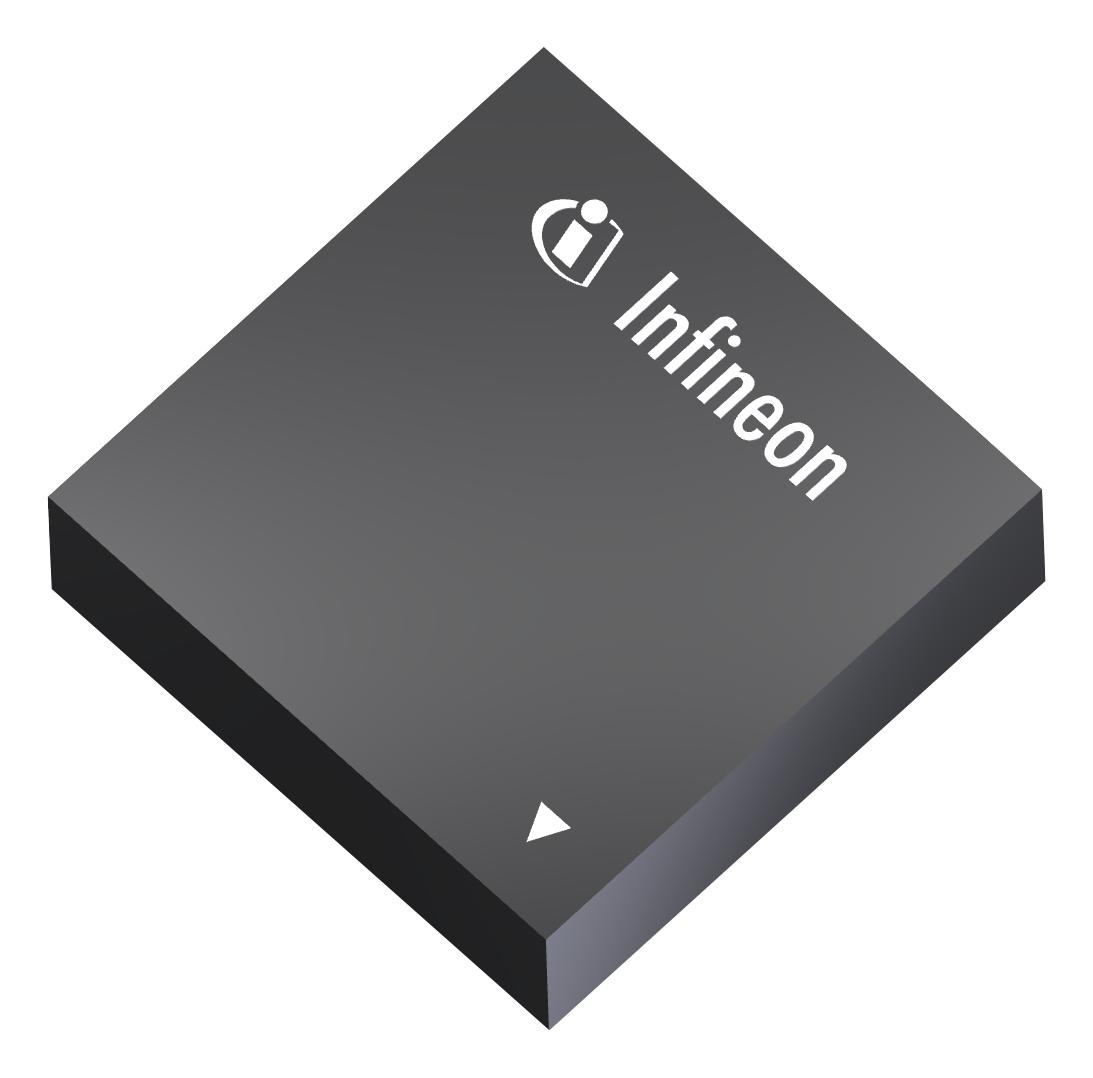

Buy the Buy Infineon BGS18MA14 Part Number 6327XTSA1 Online
Discover the high-quality Infineon RF Switch designed for LTE, WCDMA, and TDCDMA networks with frequencies up to 3.8GHz. Its compact 2.0mm x 2.0mm package offers excellent RF performance, ultra-low insertion loss, and high port-to-port isolation for reliable device operation. Suitable for multimode handsets and cellular infrastructure, it features MIPI RFFE 2.0 standard compatibility, no need for external decoupling capacitors unless DC voltage is applied, and robust ESD protection ensures durability. Purchase online now for dependable wireless connectivity.
Get Infineon BGS18MA14 today—built for high RF performance, low insertion loss, and reliable LTE, WCDMA, TDD applications.
Frequently Asked Questions
Where can I buy INFINEON BGS18MA14E6327XTSA1?
You can click on the BUY or RFQ button to purchase BGS18MA14E6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BGS18MA14E6327XTSA1?
You can download the BGS18MA14E6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BGS18MA14E6327XTSA1?
INFINEON
