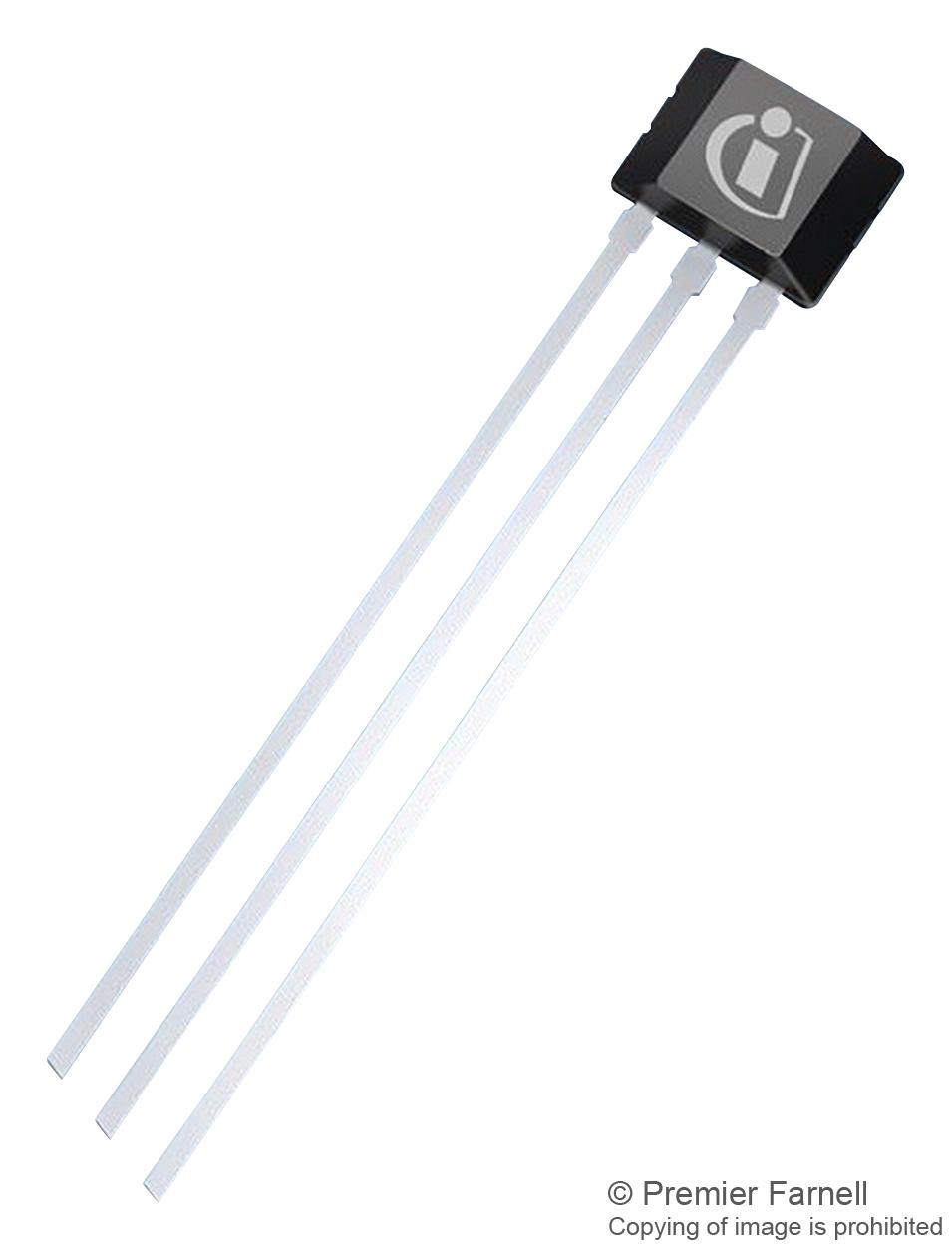

INFINEON TLE4998S3XALA1 Programmable Magnetic Sensor
The TLE4998S3XALA1 is a programmable linear magnetic sensor from Infineon, designed for precise magnetic field measurements with bipolar and unipolar operation modes. It features an extended temperature range of -40°C to 170°C, supply voltage of 4.5V to 5.5V, and an output current up to 5mA. Designed for applications requiring high reliability, it includes ESD protection of 4.0 kV, a maximum junction temperature of 170°C, and operates with a load resistance of 1 kΩ to 1 MΩ. Ideal for industrial and automotive sensing. Delivery times are extended due to high demand, and it is exempt from discounts.
INFINEON TLE4998S3XALA1 Programmable Magnetic Sensor Specifications:
- Storage temperature: -40°C to 150°C
- Junction temperature: -40°C to 170°C
- Supply voltage: 4.5V to 5.5V
- Output pull-up voltage: up to -18V
- Output current: up to 5mA
- Load resistance: 1 kΩ to 1 MΩ
- Load capacitance: 1 to 8 nF
- ESD protection: 4.0 kV (HBM, JESD22-A114-B)
- Magnetic field: unlimited T
- Operating temperature: -40°C to 125°C for 5000 hours
- Maximum junction temperature: 170°C
- Voltage on Vpp pin: -18V to 18V
- Reverse supply current: -1 to 0 mA
Buy the Buy Infineon TLE4998S3XALA1 Online
Order the Infineon TLE4998S3XALA1 today to ensure your projects benefit from high-accuracy magnetic sensing with bipolar and unipolar modes, suitable for industrial and automotive environments. With an extended temperature range of -40°C to 170°C, supply voltage of 4.5V to 5.5V, and robust ESD protection of 4.0 kV, this sensor provides reliable performance. Delivery times may be extended due to high market demand, and purchasing online guarantees quick, secure procurement of this essential component for your engineering needs.
Get Infineon TLE4998S3XALA1 today—precise magnetic sensing for industrial and automotive applications with extended reliability.
Frequently Asked Questions
Where can I buy INFINEON TLE4998S3XALA1?
You can click on the BUY or RFQ button to purchase TLE4998S3XALA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLE4998S3XALA1?
You can download the TLE4998S3XALA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLE4998S3XALA1?
INFINEON
