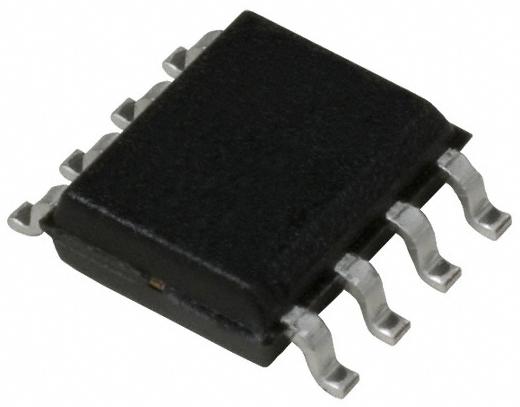

INFINEON IR2102SPBF High Voltage Power Driver
The IR2102SPBF is a high-voltage, high-speed driver for power MOSFETs and IGBTs, featuring independent high and low-side output channels. It employs proprietary HVIC and latch-immune CMOS technologies for robust monolithic construction. The logic input is compatible with standard CMOS or LSTTL levels down to 3.3V. The device's output driver includes a high pulse current buffer optimized to prevent cross-conduction. Its floating channel is designed for bootstrap operation, making it suitable for high-side switching of N-channel MOSFETs or IGBTs up to 600V. Additional features include tolerance to negative transient voltages, under-voltage lockout, matched propagation delay, and outputs out of phase with inputs. It is ideal for applications in computers, consumer electronics, communications, networking, and HVAC systems.
INFINEON IR2102SPBF High Voltage Power Driver Specifications:
- Supports high-side bootstrap operation up to 600V
- Logic input compatible with 3.3V, 5V, and 15V CMOS/LSTTL
- High pulse current buffer for minimal cross-conduction
- Tolerance to negative transient voltages
- Undervoltage lockout feature
- Matched propagation delay within 50 ns
- Outputs can be out of phase with inputs (IR2102)
- Operating temperature: -55°C to +125°C
- Supply voltage range: 10V to 20V
- Absolute maximum VBO: 625V, VSO: 25V
- Power dissipation: 0.625 W (SOIC), 1.0 W (PDIP)
- Thermal resistance: 125°C/W (PDIP), 200°C/W (SOIC)
Buy the IR Rectifier Series IR2102SPBF: Power MOSFET and IGBT Driver
Purchase the IR2102SPBF online today to ensure robust high-side switching for power MOSFETs and IGBTs up to 600V. Featuring independent high and low-side channels, bootstrap operation, and compatibility with standard CMOS and TTL logic levels, this driver offers rapid switching, minimal cross-conduction, and protection features like negative transient tolerance and undervoltage lockout. Its advanced monolithic technology guarantees durability and performance in demanding applications such as industrial systems, consumer electronics, communication hardware, and HVAC controls. Get yours now for reliable power management in your projects!
Order your IR Rectifier Series IR2102SPBF high-voltage driver today and enhance your power switching applications with reliable high-speed performance.
Frequently Asked Questions
Where can I buy INFINEON IR2102SPBF?
You can click on the BUY or RFQ button to purchase IR2102SPBF from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IR2102SPBF?
You can download the IR2102SPBF datasheet or visit the INFINEON website for support.
Who is the manufacturer of IR2102SPBF?
INFINEON
