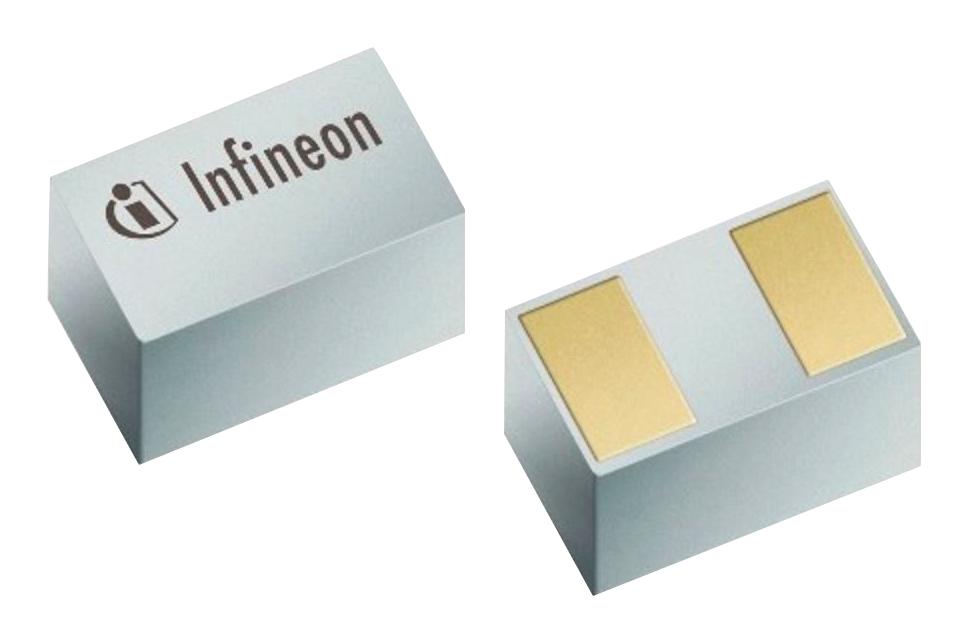

INFINEON ESD202B1CSP01005XTSA1 Transient Voltage Suppressor
The ESD202-B1-CSP01005 is a bi-directional transient voltage suppressor (TVS) diode designed for high-speed data line protection against ESD, EFT, and surge pulses. Featuring a small 01005 SMD package, it offers a working voltage of up to 5.5V, very low capacitance of 6.5 pF, and a typical clamping voltage of 13V at 16A. Its RoHS and halogen-free compliant design makes it ideal for compact, modern electronic devices, providing effective protection while maintaining high performance and durability.
INFINEON ESD202B1CSP01005XTSA1 Transient Voltage Suppressor Specifications:
- Working Voltage: up to 5.5 V
- Line Capacitance: 6.5 pF at 1 MHz
- Clamping Voltage: 13 V at 16 A typical
- ESD Protection: IEC61000-4-2 ±17 kV (air), ±15 kV (contact)
- Surge & EFT Protection: 3 A surge, ±2 kV EFT
- Peak Pulse Power: 36 W
- Peak Pulse Current: 3 A
- Operating Temperature Range: -55°C to 125°C
- Storage Temperature Range: -65°C to 150°C
- Package Size: 0.43 mm x 0.23 mm x 0.15 mm
- RoHS and Halogen Free, PCB compatible small form factor
Buy the Infineon ESD202-B1-CSP01005 – Reliable TVS for Industrial Applications
Purchase the Infineon ESD202-B1-CSP01005 now to ensure reliable, compact ESD protection for sensitive electronic components. With its bi-directional design, low capacitance of 6.5 pF, and high surge current handling, this device provides excellent performance in minimizing transients. Its RoHS and halogen-free compliant package makes it suitable for space-constrained applications in consumer electronics, industrial automation, and communication systems. Secure your high-speed data lines against ESD, EFT, and surge events efficiently by buying online today.
Get Infineon ESD202-B1-CSP01005 today—designed for high-speed data line protection, ideal for compact and industrial electronics.
Frequently Asked Questions
Where can I buy INFINEON ESD202B1CSP01005XTSA1?
You can click on the BUY or RFQ button to purchase ESD202B1CSP01005XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part ESD202B1CSP01005XTSA1?
You can download the ESD202B1CSP01005XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of ESD202B1CSP01005XTSA1?
INFINEON
