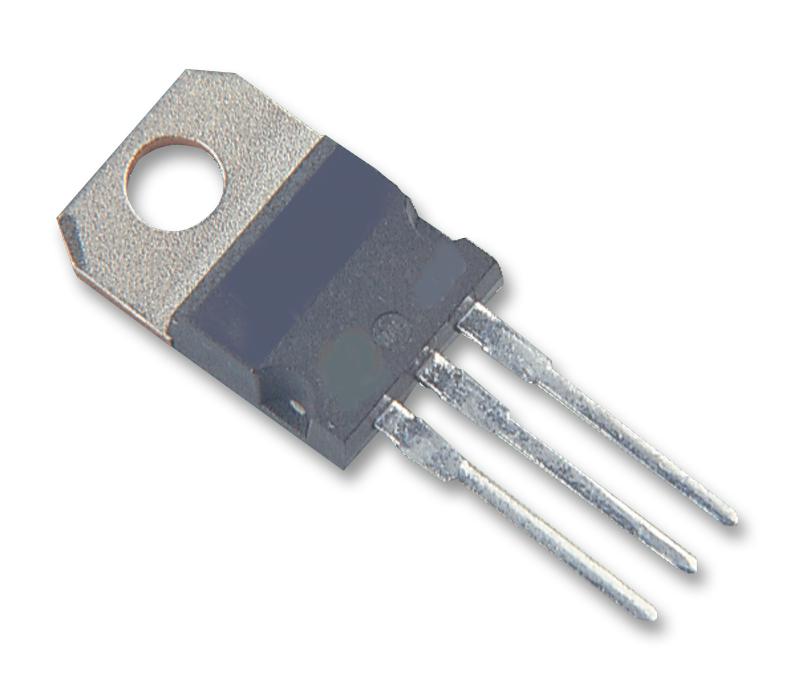

INFINEON IKA08N65ET6XKSA1 High-Voltage Power Module
The IKA08N65ET6 is a Trenchstop IGBT6 module designed for 650V applications, featuring trench and field-stop technology for high ruggedness, low Vcesat, and temperature stability. It includes a very soft, fast recovery anti-parallel diode, making it ideal for drives and major home appliances such as air conditioning units. With a collector-emitter voltage of 650V and continuous collector current of 8A, it provides reliable switching performance, low gate charge, and is RoHS compliant. Suitable for industrial and automation systems requiring stable high-voltage switching devices.
INFINEON IKA08N65ET6XKSA1 High-Voltage Power Module Specifications:
- Collector-emitter voltage: 650V
- DC collector current: 8A at 25°C, 7A at 100°C
- Pulsed collector current: 25A
- Gate-emitter voltage: +20V (max), +30V transient
- Collector-emitter saturation voltage: 1.65V at 125°C, 1.75V at 175°C
- Diode forward voltage: 4.21V at 25°C, 1.15V at 175°C
- Short circuit withstand time: 3us at 150°C, allowed number of short circuits less than 1000
- Power dissipation: 33W at 25°C, 17W at 100°C
- Operating junction temperature: -40°C to +175°C
- Storage temperature: -55°C to +150°C
- Isolation voltage RMS: 2500V
- Thermal resistance junction-case: 4.52K/W
- Thermal resistance junction-ambient: 85K/W
- Maximum junction temperature: 175°C
- Mounting torque: 0.5Nm
- Wave soldering temperature: 260°C for 10s
- RoHS compliant, Pb-free lead plating
Buy the Infineon IKA08N65ET6 – Reliable High-Voltage IGBT for Industrial Applications
Secure your equipment’s reliability today by purchasing the Infineon IKA08N65ET6 online. This 650V IGBT with a soft, fast recovery diode guarantees stable switching, low gate charge, and high ruggedness, making it perfect for drives, home appliances, and industrial automation. Its robust design ensures excellent temperature stability and long-term durability, while the RoHS-compliant, Pb-free construction aligns with eco-friendly standards. Order now to enhance your system efficiency and ensure reliable operation in demanding high-voltage applications.
Buy Infineon IKA08N65ET6 now and experience unmatched reliability and performance with a rugged 650V IGBT suitable for industrial and automation systems.
Frequently Asked Questions
Where can I buy INFINEON IKA08N65ET6XKSA1?
You can click on the BUY or RFQ button to purchase IKA08N65ET6XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKA08N65ET6XKSA1?
You can download the IKA08N65ET6XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKA08N65ET6XKSA1?
INFINEON
