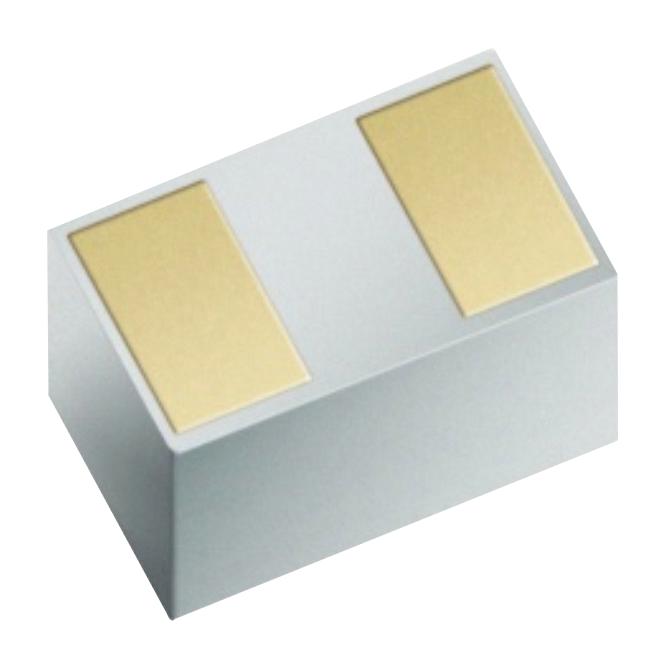

INFINEON ESD239B1W0201E6327XTSA1 Transient Voltage Suppressor
This bi-directional transient voltage suppressor (TVS) diode offers effective ESD and surge protection for mobile devices, Vbus lines, and touch screens. Featuring a small 0201 SMD footprint, it has a working voltage up to 22 V, very low capacitance of 3.2 pF, and a low clamping voltage of approximately 27 V at 16 A. RoHS and halogen-free, it ensures reliable electrical performance against IEC standards, making it ideal for compact consumer electronics, wireless charging, and USB-C applications. Its high ESD withstand voltage of ±16 kV ensures durability in harsh environments, with a maximum operating temperature of 125°C.
INFINEON ESD239B1W0201E6327XTSA1 Transient Voltage Suppressor Specifications:
- Package Size: 0201 (0.58 mm x 0.28 mm x 0.15 mm)
- Working Voltage: +22 V (Vawy)
- Line Capacitance: 3.2 pF at 1 MHz
- Clamping Voltage: 27 V at 16 A (typical)
- Peak Pulse Power: 80 W
- Peak Pulse Current: 3 A
- ESD Protection: ±16 kV (IEC 61000-4-2 Contact/Air Discharge)
- Surge Test: 3 A at 8/20 μs
- Reverse Current: <1 nA (typical)
- Operating Temperature Range: -55°C to 125°C
- RoHS and halogen free
- Application Compliance: JEDEC47/20/22
- Mounting: SMD surface-mount device for automated assembly
Buy the Infineon ESD239B1W0201 – Reliable TVS for Industrial Applications
Secure your electronic devices with the high-performance ESD239B1W0201 TVS diode. Designed for compact applications, it offers excellent ESD and surge protection with a small 0201 package, low capacitance, and high ESD tolerance. Ideal for mobile, wireless charging, and USB-C lines, it ensures durable performance in harsh environments. RoHS compliant and halogen free, this device guarantees safety and compliance. Purchase online today to enhance your product's resilience against transient voltage threats with reliable, automotive-grade protection quality.
Buy Infineon ESD239B1W0201 now and experience unmatched reliability and performance for your mobile and consumer electronic protection needs.
