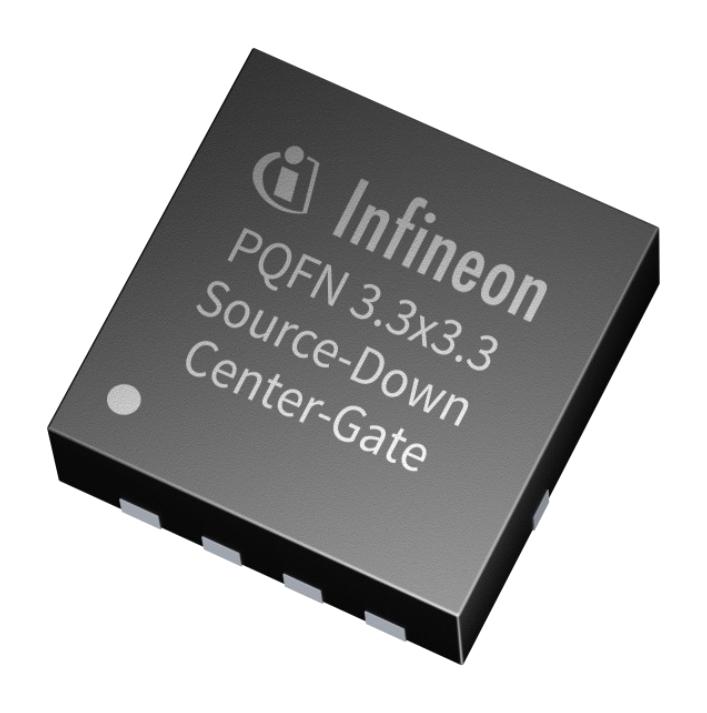

INFINEON IQE013N04LM6CGATMA1 Power-MOSFET
The IQE013N04LM6CG is a high-performance 40 V Power-MOSFET optimized for synchronous rectification, featuring very low on-state resistance and superior thermal resistance. Fully qualified to JEDEC standards for industrial applications, it offers a high drain current capability of up to 205 A, making it suitable for demanding power switching and control tasks. The device includes logic-level gate drive compatibility, low gate charge, and excellent avalanche performance for reliable operation in power management systems requiring efficiency and durability.
INFINEON IQE013N04LM6CGATMA1 Power-MOSFET Specifications:
- Drain-source voltage Vds: 40 V
- Continuous drain current Id: 205 A
- Pulsed drain current I_d,pulse: 820 A
- Gate threshold voltage Vgs(th): 1.2 – 2.0 V
- Maximum gate-source voltage Vgs: ±20 V
- On-resistance Rds(on): 135 mΩ at Vgs=10 V, Id=20 A
- Total gate charge Qg: 41 – 55 nC
- Package: PG-TTFN-9-1 (8-pin DRIPTITE™)
- Thermal resistance junction-case R_thJC: 1.4 K/W
- Thermal resistance junction-ambient R_thJA: 60 K/W
- Operating temperature range: –55°C to +175°C
- Avalanche current: 50 A, energy: 255 mJ
- Power dissipation: 25 W
Buy the Infineon IQE013N04LM6CG U+2013 Reliable Power-MOSFET for Industrial Applications
Enhance your power management systems with the Infineon IQE013N04LM6CG Power-MOSFET. Designed for demanding industrial applications, it offers low R_on, high current capacity, and excellent thermal stability. Fully qualified for rigorous environments, this 40 V device ensures efficient power switching and reliable operation. Whether for motor drives, power supplies, or automation systems, order online today to benefit from quick delivery, superior quality, and proven performance that keeps your projects running smoothly and efficiently.
Order your Infineon IQE013N04LM6CG high-current Power-MOSFET today and equip your industrial power systems with dependable, efficient switching performance.
Frequently Asked Questions
Where can I buy INFINEON IQE013N04LM6CGATMA1?
You can click on the BUY or RFQ button to purchase IQE013N04LM6CGATMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IQE013N04LM6CGATMA1?
You can download the IQE013N04LM6CGATMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IQE013N04LM6CGATMA1?
INFINEON
