INFINEON FF1500R17IP5PBPSA1 High Power Insulated Gate Bipolar Transistor Module
The PrimePACK 3+ B-series module features Trench/Fieldstop IGBT5 with emitter control, integrated five-diode configuration, and a pre-applied Thermal Interface Material. Designed for high-power converters, motor drives, traction applications, and wind turbines, it offers high current density, low switching losses, and excellent thermal cycling resilience with a compact package and high creepage distances. It supports voltages up to 1700V and currents up to 1500A, ensuring reliable operation in demanding industrial environments, with a CTI > 400, high power density, and thermal robustness.
INFINEON FF1500R17IP5PBPSA1 High Power Insulated Gate Bipolar Transistor Module Specifications:
- Collector-Emitter Voltage: 1700 V
- Continuous DC collector current at 50°C: 1500 A
- Peak collector current at 1ms: 3000 A
- Gate-Emitter Peak Voltage: +20 V
- Gate threshold voltage: 5.35 – 6.25 V
- Switching losses at VEE = 15 V, 175°C Ty: 500 mJ
- Thermal resistance junction to heatsink: Valid with pre-applied TIM
- Module weight: 1400 g
- Isolation voltage RMS, 50Hz, 1 min: 4.0 kV
- Creepage distance contact to heatsink: 360 mm
- Module dimensions in mounted condition according to ISO 10579
- Max operating temperature for baseplate: 150°C
- Mounting torque for module mounting screw M5: 6.00 Nm
- Number of Diodes: 5, with maximum repetitive peak reverse voltage 1700 V
- Maximum power dissipation at 175°C Ty: 1500 kW
- Module with high power density, high thermal cycling capability, and built-in TIM

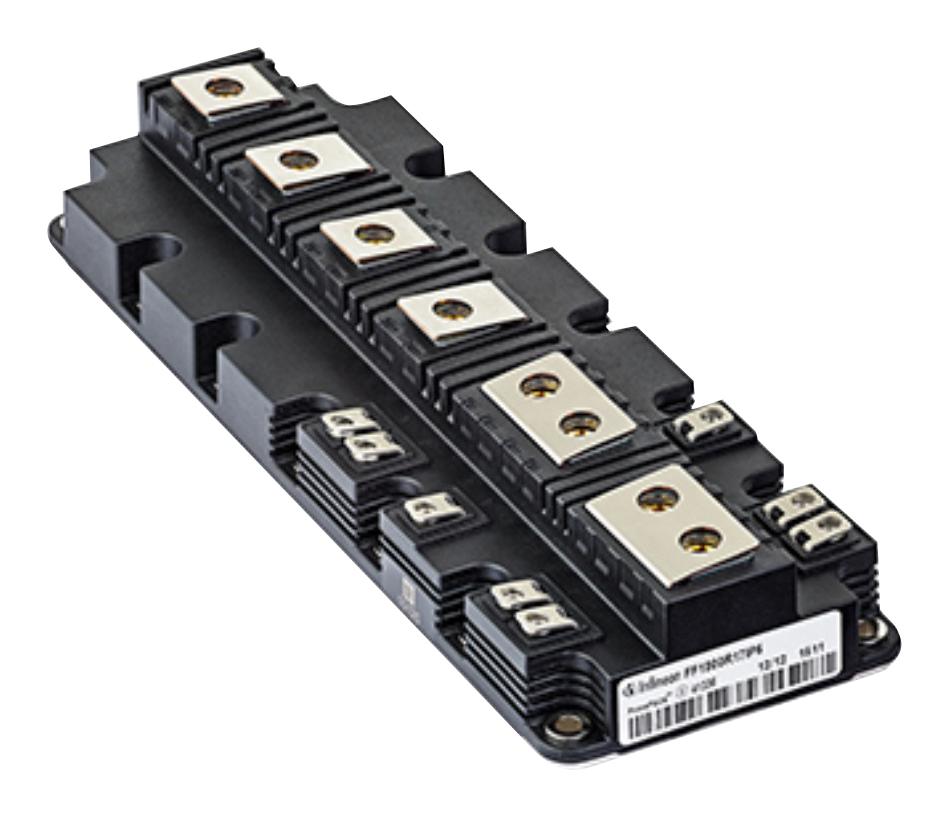

Buy the Infineon Series PrimePACK 3+ High Power Module: FF1500R17IP5
Secure your high-power conversion needs with the PrimePACK 3+ FF1500R17IP5 module. Pre-equipped with Thermal Interface Material, this robust device supports voltages up to 1700V and currents up to 1500A, making it ideal for high-performance motor drives, wind turbines, and traction systems. Its high creepage distances, thermal cycling resistance, and high power density ensure long-term reliability. Invest in this advanced module today for efficient, reliable, and safe operation in demanding industrial environments.
Buy Infineon PrimePACK 3+ FF1500R17IP5 now and experience unmatched reliability and performance in high-power industrial applications.
Frequently Asked Questions
Where can I buy INFINEON FF1500R17IP5PBPSA1?
You can click on the BUY or RFQ button to purchase FF1500R17IP5PBPSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part FF1500R17IP5PBPSA1?
You can download the FF1500R17IP5PBPSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of FF1500R17IP5PBPSA1?
INFINEON
