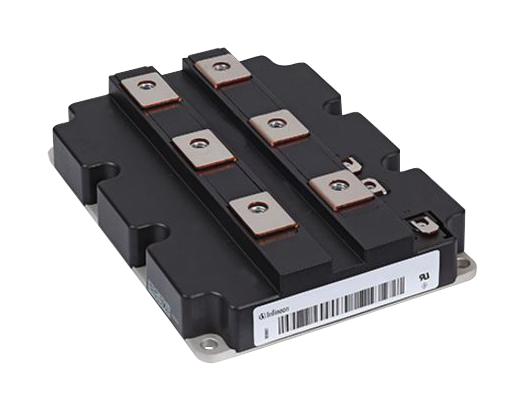

INFINEON FZ2400R17HP4B29BOSA2 High Power Inverter Module
This high-performance IGBT module features Trench/Fieldstop technology and an emitter-controlled diode, optimized for high power conversion, traction drives, and wind turbines. It offers an extended operating temperature range, low Vcesat, and robust mechanical and thermal features such as AISiC base plate, high creepage distances, and high thermal cycling capability. Suitable for resonant inverters and high power applications, it ensures high power density, reliable insulation, and efficient performance under demanding electrical and thermal conditions.
INFINEON FZ2400R17HP4B29BOSA2 High Power Inverter Module Specifications:
- Voes = 1700V
- lonom = 240A / Iau = 4800A
- Collector-Emitter Voltage Vees = 1700V at 25°C
- Continuous DC collector current Ic = 240A at 100°C, Tmax = 175°C
- Peak collector current = 4800A (repetitive, 1ms)
- Total power dissipation = 155kW at 25°C, Tymax = 175°C
- Gate-Emitter Peak Voltage Vos = ±120V
- Collector-Emitter saturation voltage Vcesat ≈ 2.30V
- Gate threshold voltage Vge(th) ≈ 5.20-6.40V
- Gate charge Qg ≈ 25.0µC
- Input capacitance ≈ 195nF at 1MHz
- Thermal resistance junction-to-case ≈ 174K/W
- Case-to-heatsink thermal resistance ≈ 100K/W
- Isolation withstand voltage RMS 4.0kV for 1 min
- Creepage Distance (Contact to heatsink) 19.1mm
- Weight approximately 1200g
- Operating temperature under switching conditions -40°C to +150°C
Buy the Infineon Series HighPower FZ2400R17HP4: FZ2400R17HP4B29BOSA2
Purchase the Infineon FZ2400R17HP4B29BOSA2 high power inverter module online today. Designed with advanced IGBT4 technology and emitter-controlled diode, it provides excellent efficiency, thermal stability, and electrical robustness suitable for demanding applications like resonant inverters, traction systems, and wind power. With enhanced thermal cycling, high creepage distances, and UL approval, this module ensures dependable operation, high power density, and ease of integration into large-scale power conversion solutions. Secure your supply now and elevate your engineering projects.
Buy Infineon FZ2400R17HP4B29BOSA2 now and experience unmatched reliability and performance in high power switching applications.
