INFINEON IKB30N65EH5ATMA1 High-Speed Switch Module
The IKB30N65EH5 is a high-speed switching IGBT module featuring a 650V breakdown voltage and a maximum junction temperature of 175°C. It incorporates Infineon’s Trenchstop™ 5 technology, ensuring efficient hard switching and resonant topologies, with low Qc and full-rated current RAPID 1 anti-parallel diode. Suitable for industrial power supplies, energy generation, and energy distribution applications, it offers reliable performance with Pb-free RoHS compliance, complete PSpice models, and robust thermal and electrical characteristics for demanding environments.
INFINEON IKB30N65EH5ATMA1 High-Speed Switch Module Specifications:
- Collector-emitter voltage: 650 V
- Collector current: 30 A (Tc = 25°C), 55 A (Tc = Tmax)
- Pulsed collector current: 90 A
- Maximum junction temperature: 175°C
- Gate-emitter voltage: +20 V, transient +30 V
- Power dissipation: 188 W at 25°C, 94 W at 100°C
- Thermal resistance: junction-case 0.8 K/W, junction-ambient 85 K/W
- Diode forward current: 40 A (Tc = 25°C), 39.5 A (Tc = 100°C)
- Diode pulsed current: 90 A
- Soldering temperature (reflow): 260°C
- RoHS compliant, halogen-free
- Transition times: turn-on delay 24 ns, rise time 238 ns, turn-off delay 159 ns, fall time 25 ns
- Switching energy: approximately 1.17 mJ (Eon), 0.30 mJ (Eoff), total 1.17 mJ
- Capacitances: input 1800 pF, output 55 pF, reverse 7 pF

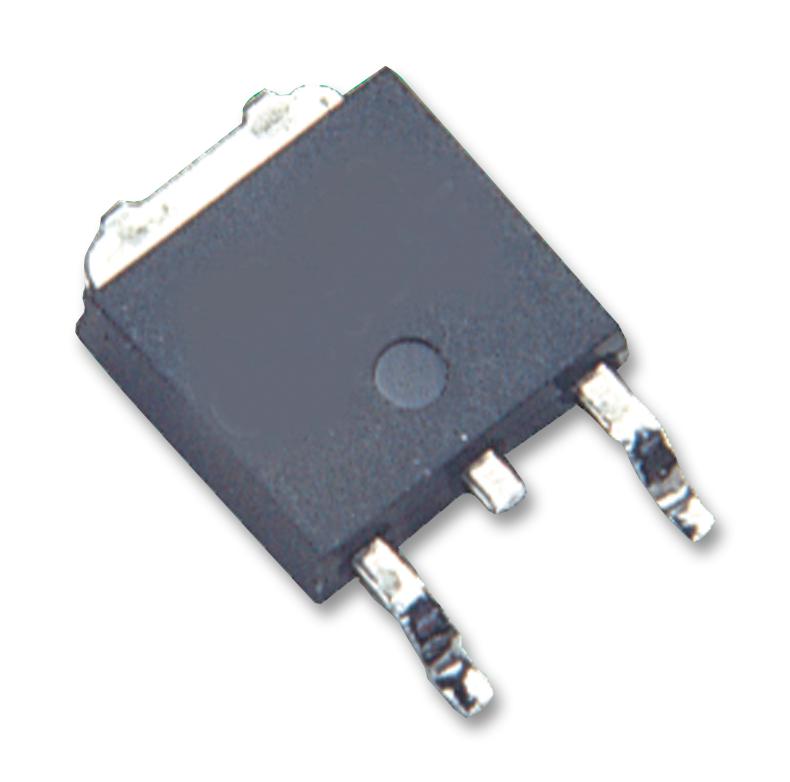

Buy the Buy Infineon IGBT Part Number IKB30N65EH5ATMA1 Online
Purchase the Infineon IGBT IKB30N65EH5 today to ensure top-tier performance in energy generation, industrial power supplies, and energy storage systems. This high-speed switching device features a 650V breakdown voltage and 55A critical current, enabling efficient operation in demanding environments. Its advanced Trenchstop™ 5 technology provides excellent efficiency during hard switching and resonant topologies. Built for durability, it includes full-rated diodes, RoHS compliance, and comprehensive PSpice models, making it ideal for applications requiring fast switching, high thermal stability, and long-lasting reliability.
Get Infineon IGBT IKB30N65EH5ATMA1 today—built for high-speed switching, efficiency, and reliable industrial performance.
