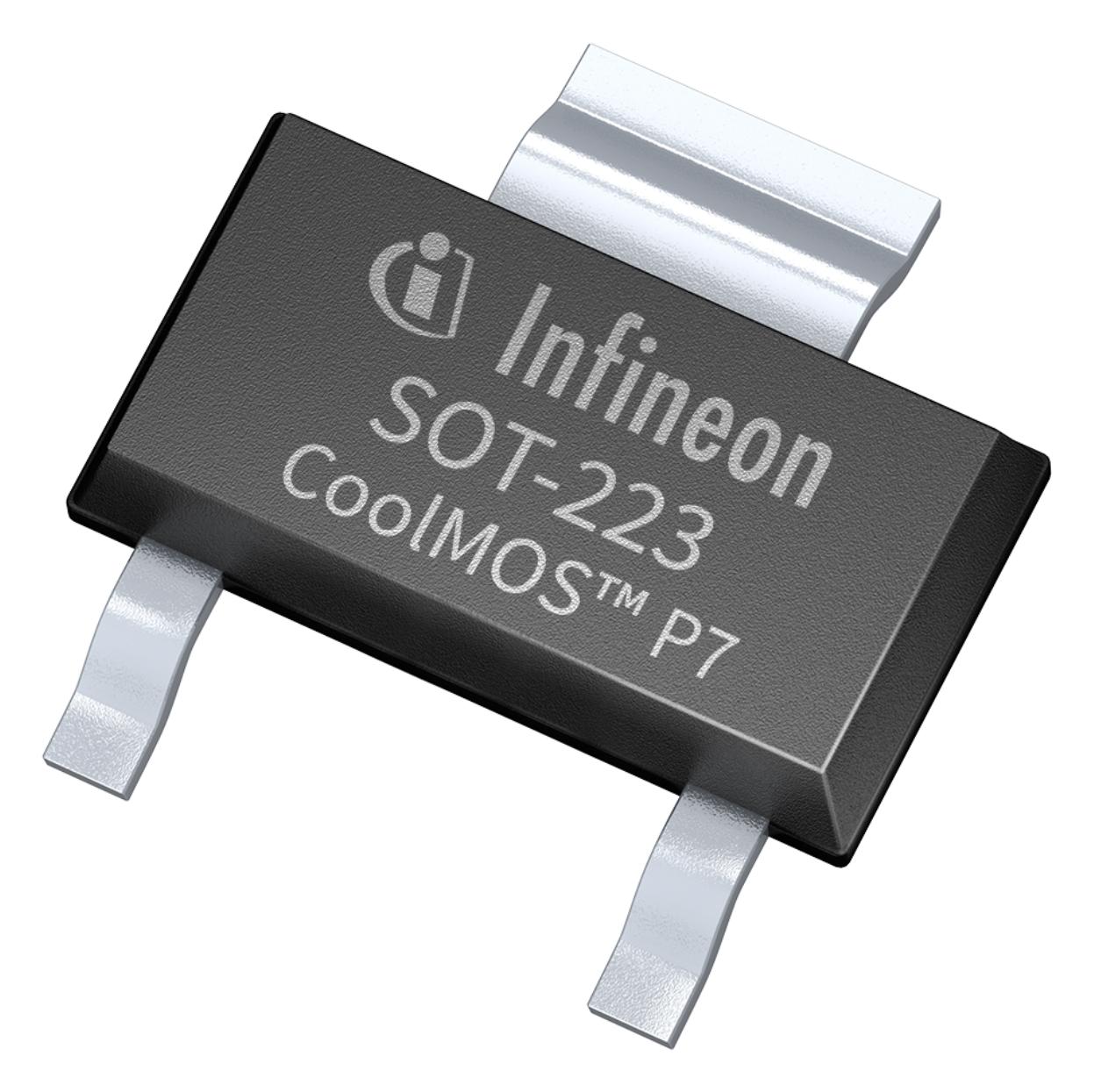

INFINEON IPN70R450P7SATMA1 High Voltage Power Transistor
The 700V CoolMOS P7 Power Transistor is a high-voltage, fast-switching MOSFET designed with superjunction technology for high efficiency and power density. Suitable for flyback and other switching topologies, it offers extremely low conduction and switching losses, excellent thermal behavior, high ESD ruggedness, and integrated ESD protection. Its optimized platform is cost-effective, enabling slim, high-performance designs in consumer applications like chargers, adapters, and lighting. Validated per JEDEC standards, it supports high-frequency operation and high power density, making it ideal for compact, energy-efficient power supplies.
INFINEON IPN70R450P7SATMA1 High Voltage Power Transistor Specifications:
- Drain-source voltage: 700 V
- Maximum continuous drain current: 65 A at Tj=100°C
- Pulsed drain current: 25.9 A at Tc=25°C
- Power dissipation: 7.1 W at Tc=25°C
- Gate threshold voltage: 3.5 V (max)
- Gate-source voltage: -30 V to +30 V
- Drain-source on-state resistance: 0.04 Ω at Vos=10V
- Gate charge: total 13.1 nC
- Reverse diode forward voltage: 0.9 V (max)
- Diode reverse recovery time: 200 ns
- Maximum operating and storage temperature: -40°C to 150°C
- Thermal resistance junction-to-solder: 41.7 °C/W
- Thermal resistance junction-to-ambient: 160 °C/W
- Switching energy (Eoss): 1.4 mJ at 400V
- ESD classification: class 2 (HBM)
Buy the Infineon Series P7 High Voltage Switch: IPN70R450P7
Purchase the Infineon IPN70R450P7S high voltage power transistor online today. Designed for energy-efficient, high-frequency switching applications like chargers, lighting, and adapters, this device combines low conduction and switching losses with excellent thermal performance and rugged ESD protection. Its superjunction technology ensures high power density and compact design, making it ideal for slim, cost-effective consumer electronics. Order now to benefit from fast delivery and trusted quality, ensuring optimal performance in your power management solutions.
Get Infineon IPN70R450P7S today—built for high efficiency and reliable switching in compact consumer power supplies.
