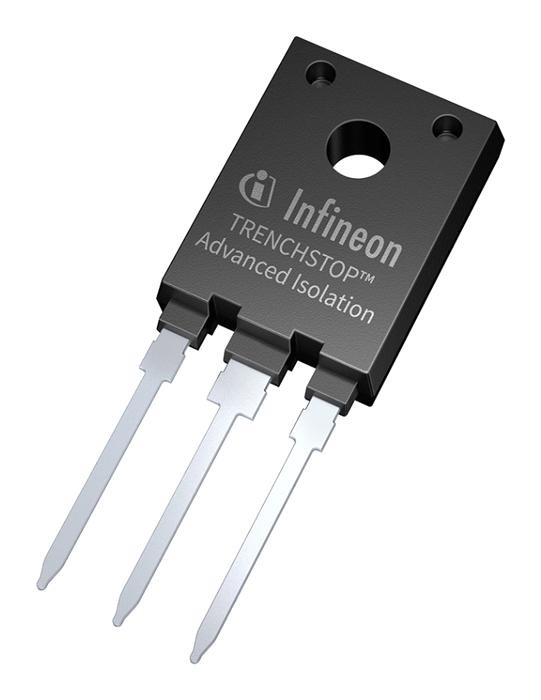

INFINEON IKFW60N60DH3EXKSA1 High-Voltage IGBT Module
The IKFW60N60DH3E is a high-performance third-generation IGBT module with advanced isolation, designed for high-speed switching in industrial applications. Featuring Trenchstop technology, it offers short circuit withstand time of 5 seconds at 175°C, low EMI, and a maximum junction temperature of 175°C. With fully isolated mounting surface and high electrical isolation of 2500 V across 50/60Hz for 1 minute, it is suitable for air conditioning PFC, servo drives, and general-purpose drives in fully isolated TO-247 packages, ensuring reliability in demanding environments.
INFINEON IKFW60N60DH3EXKSA1 High-Voltage IGBT Module Specifications:
- Vee: 600V
- Collector current: 53.0A at 25°C, 44.0A at 65°C
- Pulsed collector current: 150.0A
- Collector-emitter saturation voltage: 2.20V at 25°C, 2.80V at 175°C
- Diode forward voltage: 1.50V at 25°C, 1.45V at 175°C
- Gate-emitter threshold voltage: 4.1V to 5.7V
- Maximum junction temperature: 175°C
- Isolation voltage RMS: 2500V at 50/60Hz for 1 min
- Thermal resistance junction-heatsink: 0.90 to 1.06 K/W
- Diode reverse recovery time: 68 ns at 25°C, 104 ns at 175°C
- Power dissipation: 141W at 25°C, 104W at 65°C
- Operating junction temperature: -40°C to +175°C
- Wave soldering temperature: 260°C for 10s
- Mounting torque: 0.6 Nm for M3 screws
Buy the Infineon IKFW60N60DH3E – Reliable High-Voltage IGBT for Industrial Applications
Purchase the Infineon IKFW60N60DH3E high-voltage IGBT online now to benefit from superior switching performance, robust isolation, and industry-grade reliability. Designed for demanding industrial environments, this fully isolated module ensures optimal efficiency for PFC, servo drives, and general-purpose drive applications. Its advanced trenchstop technology provides fast switching, low EMI, and high short circuit withstand time, making it your ideal choice for high-power industrial systems. Order today and give your projects the dependable, high-performance components they deserve.
Order your Infineon IKFW60N60DH3E high-voltage IGBT today and enhance your industrial drives, PFC systems, and servo applications with dependable performance.
Frequently Asked Questions
Where can I buy INFINEON IKFW60N60DH3EXKSA1?
You can click on the BUY or RFQ button to purchase IKFW60N60DH3EXKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKFW60N60DH3EXKSA1?
You can download the IKFW60N60DH3EXKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKFW60N60DH3EXKSA1?
INFINEON
