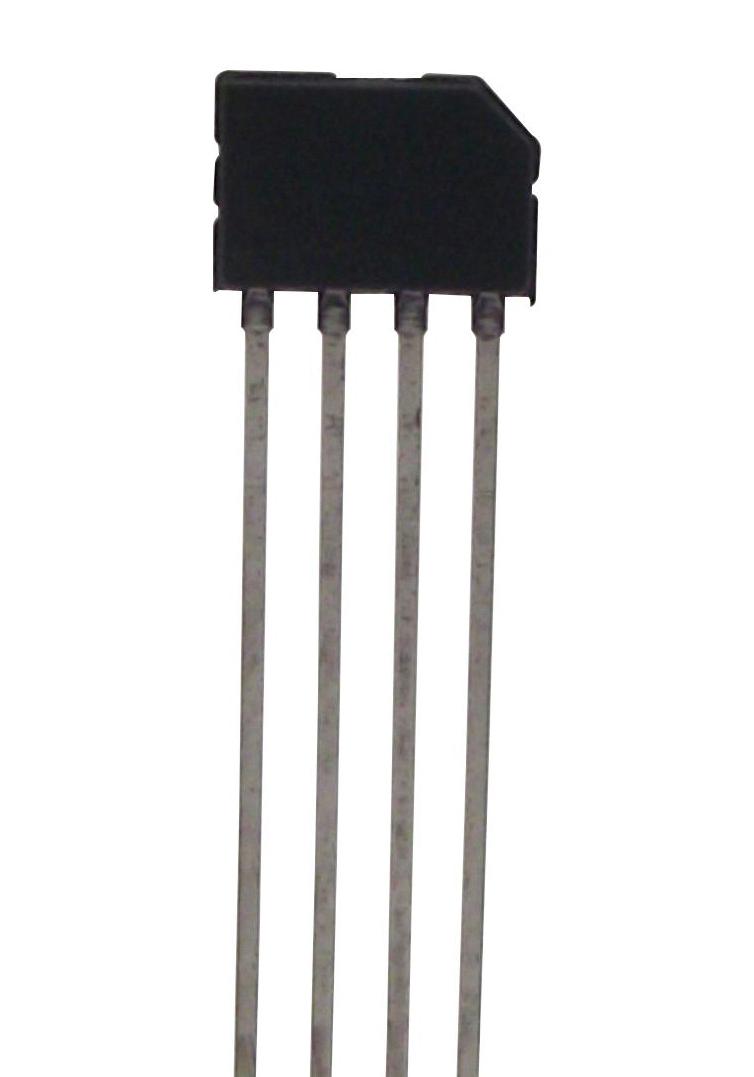

INFINEON TLE49595UFXHALA1 Speed Sensor
The TLE4959-5U FX is a RoHS-compliant differential Hall speed sensor designed for transmission applications, providing rotational speed and direction information with high magnetic sensitivity and vibration suppression. It features dynamic self-calibration, adaptive hysteresis, and a four-pin package qualified for automotive use. The sensor includes a sophisticated algorithm to mitigate vibration effects, ensuring stable performance even with large airgaps. Suitable for magnetic encoder and ferromagnetic wheel setups, it boasts high immunity against ESD, EMC, mechanical stress, and voltage drops, making it ideal for transmission control systems.
INFINEON TLE49595UFXHALA1 Speed Sensor Specifications:
- Package: PG-SSO-4-1, four-pin package
- Operating temperature range: Automotive standards
- Magnetic sensitivity: High
- Airgap: Large operating airgap supported
- Self-calibration: Dynamic, active vibration suppression
- Output protocol: With and without rotation direction detection
- Vibration suppression: High capability
- Electrical features: 3-wire voltage interface, high EMC and ESD immunity
- Application: Magnetic encoder, ferromagnetic wheel
- Protection: RoHS compliant, AEC qualified, robust against mechanical stress
- Supply voltage: 12V (recommended protection resistor 100-330Ω), 5V (with pull-up resistor around 1.2kΩ)
- Pulse width options: Various (25-207 μs depending on mode)
- Speed detection: Up to high rotational speeds with stable signals
- Compliance: RoHS, Automotive qualified, suitable for harsh environments
Buy the Infineon Series FX Speed Sensor: TLE4959-5UFX
Purchase the Infineon Series FX TLE4959-5UFX speed sensor online today and ensure your transmission system benefits from precise rotational speed detection and robust vibration suppression. This highly sensitive differential Hall sensor features adaptive hysteresis, dynamic self-calibration, and high immunity against mechanical stress, ESD, and EMC interference. Its four-pin package, automotive qualification, and RoHS compliance make it ideal for demanding automotive transmissions and encoder applications. Get excellent airgap performance, customizable parameters, and long-term reliability by ordering your sensor now for seamless integration into your control systems.
Order your Infineon Series FX TLE4959-5UFX speed sensor today and enhance transmission control with reliable, vibration-resistant performance.
Frequently Asked Questions
Where can I buy INFINEON TLE49595UFXHALA1?
You can click on the BUY or RFQ button to purchase TLE49595UFXHALA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLE49595UFXHALA1?
You can download the TLE49595UFXHALA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLE49595UFXHALA1?
INFINEON
