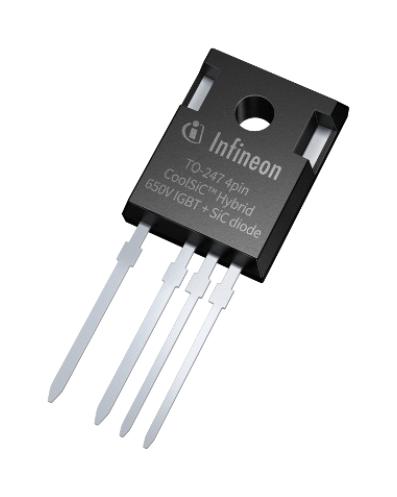

INFINEON IKZA50N65RH5XKSA1 Hybrid SiC IGBT
The Hybrid CoolSiC IGBT by Infineon combines advanced Trenchstop 5 technology with CoolSiC Schottky diode, offering ultra-low switching losses and high efficiency. It features Kelvin emitter and optimized pin-out for simplified PCB design, making it suitable for industrial power supplies, energy generation, and energy storage applications. With a maximum junction temperature of 175°C and JEDEC qualification, it ensures reliable operation across demanding environments. The device provides excellent switching performance, high current handling, and thermal robustness for modern power electronic systems.
INFINEON IKZA50N65RH5XKSA1 Hybrid SiC IGBT Specifications:
- Collector-emitter voltage: 650 V
- DC collector current: 80.0 A at 25°C, 56.0 A at 100°C
- Pulsed collector current: 200.0 A
- Diode forward current: 33.7 A at 25°C, 22.8 A at 100°C
- Maximum junction temperature: 175°C
- Thermal resistance junction-case: 0.50 K/W
- Thermal resistance junction-ambient: 40 K/W
- Gate-emitter voltage: +20 V, transient +30 V
- Switching energies: turn-on 0.20 mJ, turn-off 0.18 mJ at 25°C, 0.27 mJ and 0.27 mJ at 150°C respectively
- Capacitance: input 2660 pF, output 320 pF
- Gate charge: approximately 120 nC at Vge=15V
- Dimensions: D: 20.90-21.10 mm, A: 4.90-5.10 mm, L: 19.80-20.10 mm
- Operating temperature: -40°C to +175°C
- Storage temperature: -55°C to +150°C
- Qualification: JEDEC qualified for target applications
- RoHS compliant, halogen-free plating
Buy the Buy Infineon Hybrid Cooler SiC IGBT Part Number IKZA50N65RH5XKSA1 Online
Purchase the Infineon Hybrid CoolSiC IGBT online today to enhance your power systems with ultra-low switching losses, high current capacity, and reliable performance up to 175°C. This high-efficiency device is perfect for industrial power supplies, energy generation like solar inverters, energy storage, and fast chargers. With JEDEC qualification and RoHS compliance, it guarantees quality and environmental standards. Simplify your PCB design, improve thermal management, and achieve optimal performance with this advanced power semiconductor solution. Order now and upgrade your power conversion technology with confidence.
Buy Infineon IKZA50N65RH5XKSA1 now and experience unmatched reliability and high-efficiency power switching for industrial and energy applications.
