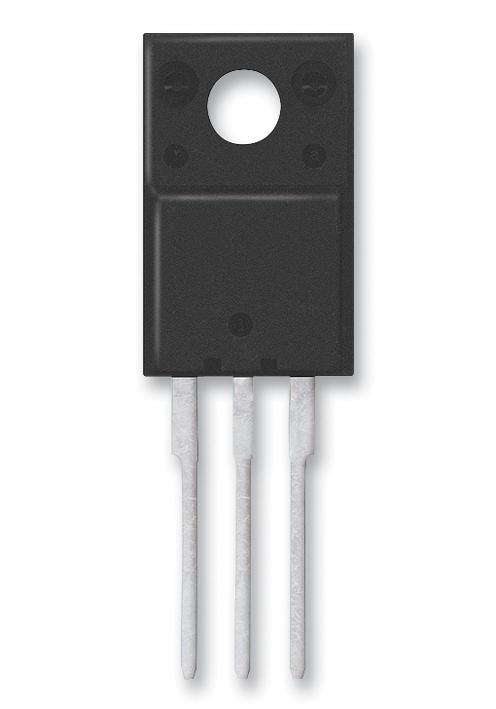

INFINEON IPA80R1K4P7XKSA1 High-Voltage Power Transistor
The 800V CoolMOS™ P7 Power Transistor is a high-voltage super junction MOSFET designed for efficient switching applications. It features industry-leading Rds(on), low gate charge, integrated Zener diode ESD protection, and is qualified for industrial-grade use according to JEDEC standards. Suitable for hard and soft switching topologies, LED lighting, chargers, adapters, and solar inverters, it enables higher power densities, BOM savings, and improved manufacturing yields. Its robust design simplifies parallel operation and enhances reliability in demanding environments.
INFINEON IPA80R1K4P7XKSA1 High-Voltage Power Transistor Specifications:
- Maximum drain-source voltage: 800V
- Continuous drain current: 7A
- Pulsed drain current: 8.9A
- Avalanche energy (single pulse): 8mJ
- Operation temperature range: -55°C to 150°C
- Power dissipation: 24W at 25°C
- Gate threshold voltage: 3V (typical 3.5V)
- Drain-source resistance: 31mΩ (typical at 10V)
- Maximum diode reverse recovery time: 800ns
- Diode forward voltage: 0.9V at 1.4A
- Package: PG-TO 220 FullPAK
- Insulation withstand voltage: 2500V
- Thermal resistance junction-case: 5.1°C/W
- Soldering temperature (wave): 260°C for 10s
- Reverse diodes: fuse 3A and pulse 8.9A capability
- Maximum operating junction temperature: 150°C
Buy the Buy Infineon CoolMOS Power Transistor Part Number IPA80R1K4P7XKSA1 Online
Purchase the Infineon high-voltage power transistor online today to benefit from its industry-leading 800V Rds(on), low gate charge, and integrated ESD protection. This robust MOSFET is ideal for demanding applications like LED lighting, power supplies, and solar inverters, offering higher power density, cost savings, and simplified parallel operation. Designed for industrial and consumer use, it ensures exceptional reliability and efficiency, helping you build advanced, energy-efficient systems with ease and confidence.
Order your Infineon Series IPA80R1K4P7 high-voltage MOSFET today and enhance your power conversion and switching designs with reliable industrial-grade performance.
Frequently Asked Questions
Where can I buy INFINEON IPA80R1K4P7XKSA1?
You can click on the BUY or RFQ button to purchase IPA80R1K4P7XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPA80R1K4P7XKSA1?
You can download the IPA80R1K4P7XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPA80R1K4P7XKSA1?
INFINEON
