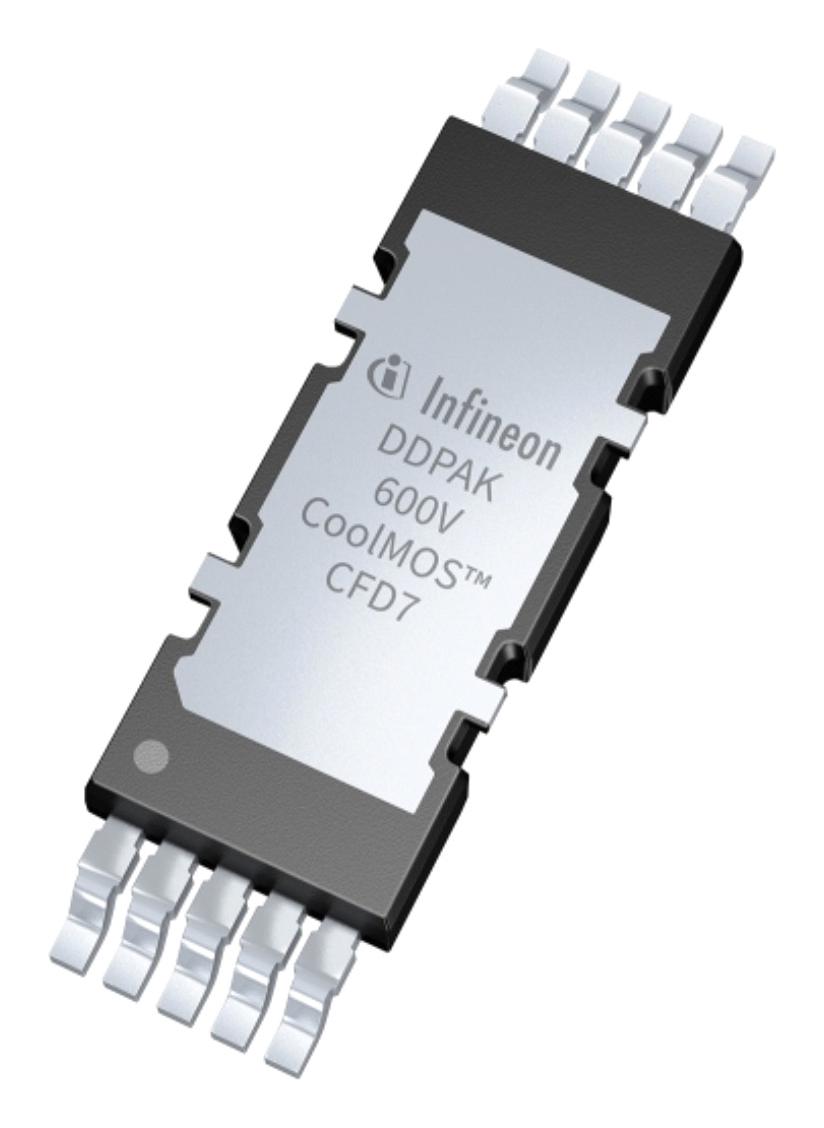

INFINEON IPDD60R075CFD7XTMA1 High Voltage Power MOSFET
The CoolMOS CFD7 is a high-voltage power MOSFET designed with superjunction technology, offering ultra-fast body diode, low gate charge, and outstanding efficiency. It is optimized for soft switching applications such as phase-shift full-bridge (ZVS) and LLC resonant topologies, providing excellent ruggedness, reliability, and power density. Fully qualified to JEDEC standards, this 600V MOSFET ensures reliable performance in server, telecom, and EV charging applications, combining fast switching, high efficiency, and robust hard commutation capabilities for demanding industrial environments.
INFINEON IPDD60R075CFD7XTMA1 High Voltage Power MOSFET Specifications:
- Drain-Source Voltage: 600 V
- Continuous Drain Current: 97 A
- Pulsed Drain Current: 97 A
- Avalanche Energy (Single Pulse): 114 mJ
- Avalanche Energy (Repetitive): 0.57 mJ
- Body Diode Reverse Recovery Charge Qr: 0.51 to 1.02 pC
- Reverse Recovery Time: 165 ns
- Gate Threshold Voltage: 3.5 to 4.5 V
- On-Resistance Rds(on): 0.136 Ω @ Vos=10V, Io=11.4A
- Gate Charge Qg: 51 nc
- Gate Resistor: 8.0 Ω
- Thermal Resistance, junction-ambient: 62 °C/W
- Storage Temperature Range: -55°C to 150°C
- Operating Junction Temperature: -55°C to 150°C
- Reflow Soldering Temperature: 260°C
- Gate-Source Voltage: ±20 V
- Diode Forward Voltage: 1.0 V
Buy the Infineon IPDD60R075CFD7 – Reliable High Voltage MOSFET for Industrial Applications
Enhance your industrial projects with this high voltage 600V MOSFET featuring ultra-fast body diode, low gate charge, and excellent ruggedness. Ideal for resonant topologies like phase-shift full-bridge and LLC, it offers superior efficiency and reliability. Fully qualified to JEDEC standards, this power transistor ensures consistent performance in server, telecom, and EV charging applications. Designed for easy integration, it combines fast switching with high power density and robust hard commutation robustness, making it the perfect choice for demanding industrial power solutions.
Order your Infineon Series IPDD60R075CFD7 today and give your projects the dependable quality they deserve. This 600V power MOSFET is designed for soft switching topologies, maximizing efficiency and robustness in server, telecom, and EV charging solutions, with proven reliability and fast switching capabilities. Don't miss out—boost your system's performance with this high-voltage MOSFET that ensures optimal operation and durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy INFINEON IPDD60R075CFD7XTMA1?
You can click on the BUY or RFQ button to purchase IPDD60R075CFD7XTMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPDD60R075CFD7XTMA1?
You can download the IPDD60R075CFD7XTMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPDD60R075CFD7XTMA1?
INFINEON
