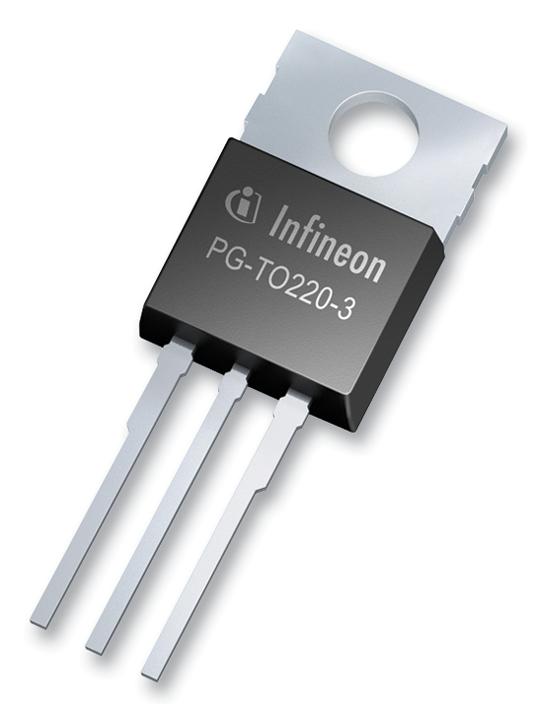

INFINEON IPP042N03LGXKSA1 Power MOSFET
The IPP042N03L G is an OptiMOS™ N-channel Power MOSFET designed to enhance power density and energy efficiency. It offers improved electromagnetic interference (EMI) performance, contributing to increased battery life. The device is available in a half-bridge configuration and features a logic-level gate, very low on-resistance (RDS(on)), and an excellent gate charge to RDS(on) figure of merit (FOM). It is avalanche rated and halogen-free, making it a green device suitable for power management, motor control, LED lighting, computers, and portable electronics. Qualified according to JEDEC standards, it helps eliminate external snubber networks, saving space and reducing power losses.
INFINEON IPP042N03LGXKSA1 Power MOSFET Specifications:
- Maximum drain-source voltage Vos 30 V
- Continuous drain current Ip 70 A
- Pulsed drain current 400 A
- Avalanche current 70 A
- Avalanche energy 60 mJ
- Gate threshold voltage 1 to 22 V
- Gate-source leakage current 10 to 100 nA
- On-resistance RDS(on) 4.2 mΩ (VGS=10V), 6.0 mΩ (VGS=4.5V)
- Gate charge Qg 18 nC
- Input capacitance 2900-3900 pF
- Output capacitance 1100-1500 pF
- Switching delay times 74-28 ns
- Thermal resistance junction-case 1.9 K/W
- Power dissipation 79 W
- Operating temperature -55°C to 175°C
- Package: PG-TO263-3
Buy the Buy Infineon OptiMOS N-Channel Power MOSFET Part Number IPP042N03LGXKSA1 Online
Purchase the Infineon SeriesIP042N03L G Power MOSFET online today to upgrade your power management solutions. This high-efficiency, low RDS(on) device offers excellent gate charge performance and is ideal for applications requiring reliable, energy-efficient switching, such as motor drives, LED lighting, and portable electronics. Its halogen-free design is environmentally friendly, and the device's robust ratings ensure durability and consistent performance. Enjoy fast delivery and competitive pricing when you buy online—empowering your projects with top-tier electronic components.
Order your Infineon SeriesIP042N03L G high-performance MOSFET today and ensure efficient power management and reliable control for your electronic projects.
Frequently Asked Questions
Where can I buy INFINEON IPP042N03LGXKSA1?
You can click on the BUY or RFQ button to purchase IPP042N03LGXKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPP042N03LGXKSA1?
You can download the IPP042N03LGXKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPP042N03LGXKSA1?
INFINEON
