INFINEON IPN80R600P7ATMA1 High-Voltage Power Transistor
The IPN80R600P7 is an 800V high-performance power transistor designed for industrial applications requiring reliable high-voltage switching. It features optimized parameters such as low Qg, Ciss, and Coss for efficient power management, integrated Zener diode ESD protection, and a fully qualified JEDEC industrial rating. Its enhanced Rds(on) and low gate charge enable high current operation, making it suitable for flyback topologies, LED lighting, low power chargers, and PFC stages. Its robust package and thermal characteristics support high-density, energy-efficient power conversion systems.
INFINEON IPN80R600P7ATMA1 High-Voltage Power Transistor Specifications:
- Drain-source breakdown voltage: 800V
- Continuous drain current: 55A at Tj=100°C
- Pulsed drain current: 22A
- Avalanche energy: 20 mJ (single pulse), 0.17 mJ (repetitive)
- Power dissipation: 74W at Tj=25°C
- Operating temperature range: -55°C to 150°C
- Thermal resistance junction-solder point: 47°C/W
- Thermal resistance junction-ambient: 160°C/W
- Gate threshold voltage: 3V to 3.5V
- Gate charge: 20nC total
- Drain-source on-resistance: 1.33Ω at Vgs=10V
- Reverse diode forward voltage: 0.9V
- Reverse recovery time: 640ns

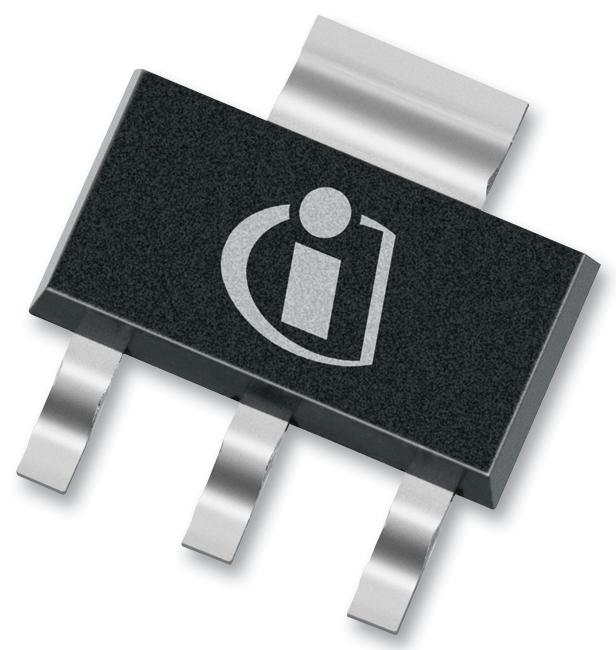

- Package: PG-SOT223
- Max ESD class (HBM): 2
Buy the Infineon IPN80R600P7 – Reliable Power Transistor for Industrial Applications
Upgrade your power management system with the high-voltage Power Transistor designed for demanding industrial applications. Featuring 800V breakdown voltage, low Rds(on), and integrated ESD protection, this transistor enables efficient high-current switching and superior thermal performance. Its robust package and qualified JEDEC ratings ensure durability and reliability in continuous operation. Ideal for LED lighting, power converters, and PFC stages, this component improves system efficiency, reduces overall costs, and ensures long-term operational stability. Purchase online today for guaranteed quality and fast delivery.
Buy Infineon IPN80R600P7 now and experience unmatched reliability and high-performance power switching in industrial environments.
Frequently Asked Questions
Where can I buy INFINEON IPN80R600P7ATMA1?
You can click on the BUY or RFQ button to purchase IPN80R600P7ATMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPN80R600P7ATMA1?
You can download the IPN80R600P7ATMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPN80R600P7ATMA1?
INFINEON
