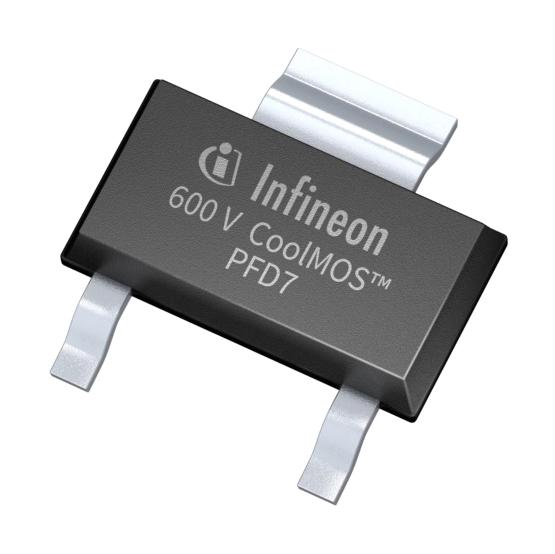

INFINEON IPS60R210PFD7SAKMA1 High Voltage Power MOSFET
The IPS60R210PFD7S is a high-voltage MOSFET utilizing Infineon’s CoolIMOS™ superjunction technology, designed for efficient switching in industrial power applications. It features ultra-low losses, high efficiency, and excellent thermal performance, making it suitable for chargers, adapters, lighting, and motor drives. The device supports high power density and fast switching speeds with a robust body diode, ensuring reliable operation in high-demand switching topologies. Qualified to JEDEC standards, the MOSFET excels in high-frequency, compact, and energy-efficient designs.
INFINEON IPS60R210PFD7SAKMA1 High Voltage Power MOSFET Specifications:
- Maximum drain-source voltage: 600V
- Continuous drain current: 42A
- Pulsed drain current: 42A
- Avalanche energy, single pulse: 49mJ
- Avalanche energy, repetitive: 0.24mJ
- Gate threshold voltage: 3.5V to 4.5V
- Gate-source leakage current: 100nA
- Drain-source on-resistance: 0.386Ω at 10V
- Gate to source charge: 6nC
- Gate to drain charge: 7nC
- Total gate charge: 23nC
- Maximum operating junction temperature: 150°C
- Thermal resistance, junction to case: 1.94°C/W
- Maximum power dissipation: 64W
- Storage temperature: -40°C to 150°C
- Gate resistance: 11Ω
- Insulation withstand voltage: specified at manufacturer
- Package: PG-TO 251-3
- Qualified according to JEDEC standards
Buy the Infineon IPS60R210PFD7S – Reliable High-Voltage Power MOSFET for Industrial Applications
Purchase the Infineon IPS60R210PFD7S MOSFET online today to enhance your power electronic designs with high voltage, low losses, and excellent thermal performance. This device is ideal for high-density chargers, adapters, lighting, and motor drive applications. Its robust superjunction structure offers high efficiency, reliable switching, and quick response times, ensuring your systems operate smoothly and efficiently. Order now to benefit from superior quality, JEDEC qualification, and fast delivery, making your projects more reliable and energy-efficient.
Get Infineon IPS60R210PFD7S today—built for high efficiency, fast switching, and reliable power management in demanding industrial environments.
Frequently Asked Questions
Where can I buy INFINEON IPS60R210PFD7SAKMA1?
You can click on the BUY or RFQ button to purchase IPS60R210PFD7SAKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPS60R210PFD7SAKMA1?
You can download the IPS60R210PFD7SAKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPS60R210PFD7SAKMA1?
INFINEON
