INFINEON IPS60R280PFD7SAKMA1 High Voltage Power MOSFET
The IPS60R280PFD7S is a 600V CoolMOS™ SJ power MOSFET utilizing advanced superjunction technology. Designed for high efficiency and high power density applications such as chargers, adapters, motor drives, and lighting, it features low switching and conduction losses, excellent thermal behavior, and a fast body diode. Qualified according to JEDEC standards, it supports high-frequency operation and offers high ESD ruggedness, making it ideal for compact, energy-efficient solutions with excellent ease of use and reliability.
INFINEON IPS60R280PFD7SAKMA1 High Voltage Power MOSFET Specifications:
- Maximum drain-source voltage: 600V
- Pulsed drain current: 31A
- Continuous drain current: (value not specified, external research needed)
- Avalanche energy, single pulse: 36mJ
- Avalanche energy, repetitive: 0.18mJ
- Gate threshold voltage: 3.5V to 4.5V
- Drain-source on resistance: 0.549Ω at Vos=10V, 3.6A, Tj=150°C
- Thermal resistance junction-case: 2.43°C/W
- Thermal resistance junction-ambient: 62°C/W
- Gate charge total: 15.3nC
- Diode forward voltage: approximately 1.0V at 3.6A
- Switching times: turn-on delay 18ns, turn-off delay 48ns
- Repetitive avalanche current: 2.5A
- Storage temperature range: -40°C to 150°C
- Operating junction temperature: -40°C to 150°C
- Mounting torque: unspecified, recommended to follow standard procedures

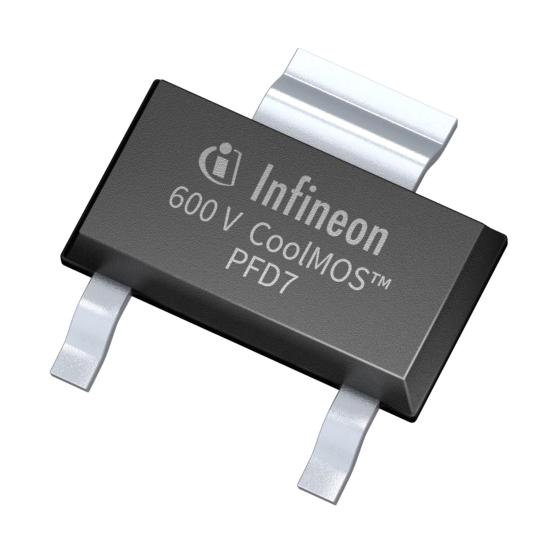

Buy the Buy Infineon CoolMOS PFD7 Part Number IPS60R280PFD7S Online
Enhance your power management systems by ordering the Infineon CoolMOS PFD7 power MOSFET online. This high voltage device is optimized for energy-efficient applications like chargers, lighting, and motor drives. Featuring low conduction and switching losses, fast switching speeds, and rugged thermal performance, it supports high-frequency operation and compact designs. Qualified according to JEDEC standards, it offers excellent reliability, high ESD resistance, and a broad portfolio of package options. Invest in high power density solutions for modern electronics and enjoy fast delivery and full technical support by ordering today.
Order your Infineon SeriesIPS60R280PFD7S high voltage MOSFET today and ensure your designs achieve maximum efficiency and reliability with superior switching performance.
Frequently Asked Questions
Where can I buy INFINEON IPS60R280PFD7SAKMA1?
You can click on the BUY or RFQ button to purchase IPS60R280PFD7SAKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPS60R280PFD7SAKMA1?
You can download the IPS60R280PFD7SAKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPS60R280PFD7SAKMA1?
INFINEON
