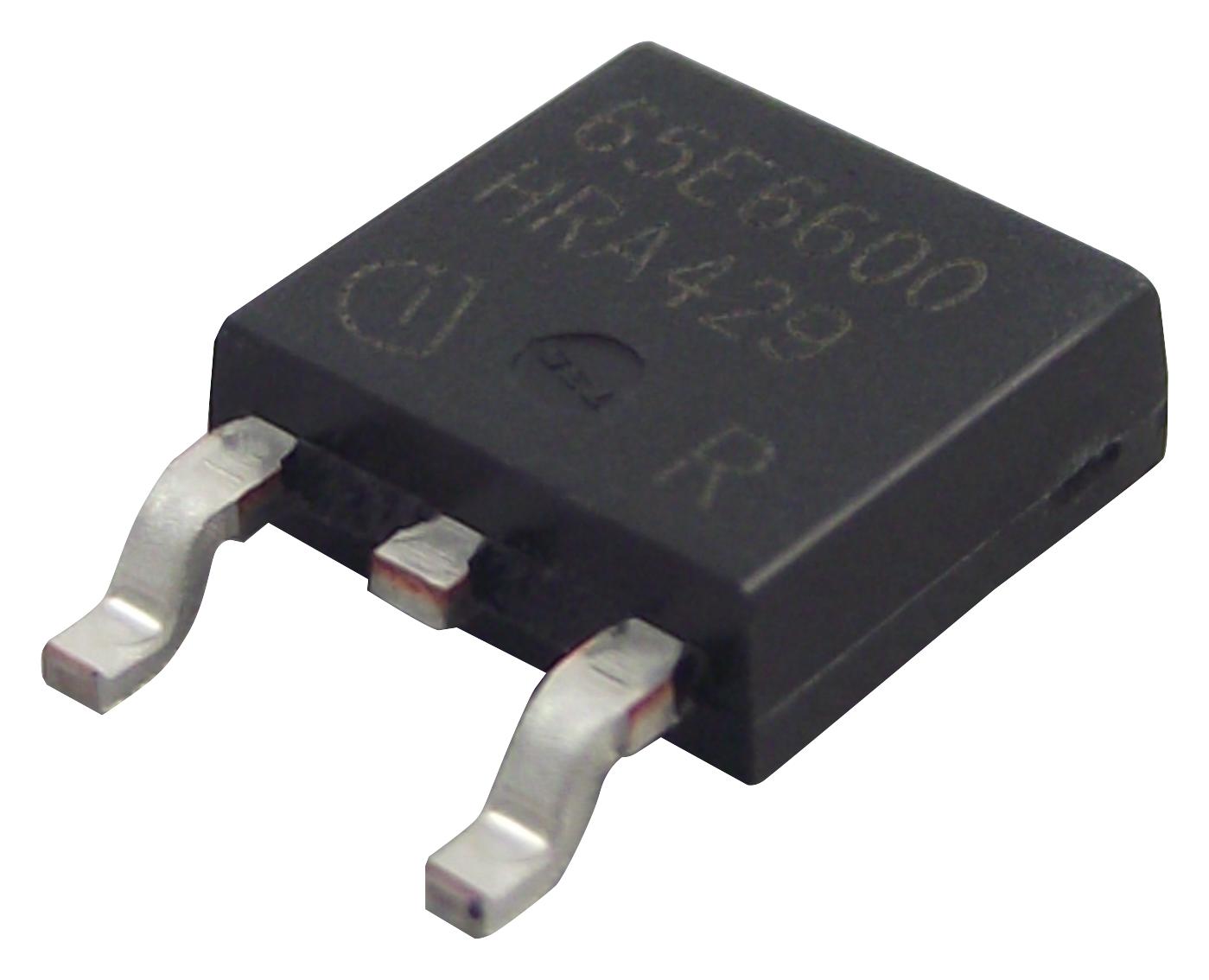

INFINEON IPD65R600E6ATMA1 Power MOSFET
The CoolMOS E6 power transistor from Infineon is a high-voltage, low-loss MOSFET designed using superjunction technology. Rated at 650V, it offers extremely low switching and conduction losses, making it highly efficient for switch mode power supplies, PFC stages, and resonant switching applications. Its high ruggedness and ease of drive make it suitable for various industrial and consumer electronic power management solutions. Available in Halogen-free and standard packages like PG-TO252 and PG-TO220 FullPAK, it ensures reliable performance across demanding environments.
INFINEON IPD65R600E6ATMA1 Power MOSFET Specifications:
- Drain-Source Voltage: 650 V
- Continuous Drain Current: 7.3 A at 25°C, 46 A at 100°C
- Pulsed Drain Current: 18 A
- Avalanche Energy, Single Pulse: 142 mJ
- Avalanche Energy, Repetitive: 0.21 J
- Gate Threshold Voltage: 2.5 V to 3.5 V
- On-Resistance: 1.4 Ω (typ.) at 10 V Gate
- Gate Charge: Total 23 nC
- Input Capacitance: 440 pF
- Output Capacitance: 30 pF
- Power Dissipation: 63 W (non FullPAK), 28 W (FullPAK)
- Operating Temperature Range: -55°C to 150°C
- Thermal Resistance Junction-Case: 2.0 °C/W (TO-220), 4.5 °C/W (FullPAK)
- Reflow Soldering Temp: 260°C
- Package Types: PG-TO252, PG-TO220 FullPAK
Buy the Buy Cinfineon Power MOSFET Part Number IPD65R600E6 Online
Enhance your power management systems with the Cinfineon high-voltage power MOSFET, rated at 650V. It features extremely low switching and conduction losses, making it ideal for high efficiency PFC stages, resonant switching, and industrial power supplies. With high ruggedness, low gate charge, and excellent thermal characteristics, this MOSFET ensures reliable operation under demanding conditions. Available in halogen-free and conventional packages, it provides an easy upgrade path for engineers seeking to optimize efficiency and reduce thermal management challenges.
Buy Cinfineon IPD65R600E6 power MOSFET now and experience unmatched reliability and efficient high-voltage power switching for demanding applications.
Frequently Asked Questions
Where can I buy INFINEON IPD65R600E6ATMA1?
You can click on the BUY or RFQ button to purchase IPD65R600E6ATMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPD65R600E6ATMA1?
You can download the IPD65R600E6ATMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPD65R600E6ATMA1?
INFINEON
