INFINEON PVD1354NPBF Solid-State Photovoltaic Relay
The PVD1354NPBF is a HEXFET® through-hole power MOSFET photovoltaic relay featuring bounce-free operation. This DC relay is a single-pole, normally open solid-state device designed as a replacement for electromechanical relays used for general-purpose analog signal switching. It employs HEXFET power MOSFETs as the output switch, driven by an integrated photovoltaic generator with a novel construction. The relay is controlled optically by radiation from a GaAlAs LED, which is isolated from the photovoltaic generator. It offers advantages over traditional electromechanical and reed relays, including long life, fast switching speed, low power consumption, bounce-free operation, and low thermal offset voltages. These features make it suitable for applications such as process control, multiplexing, automatic test equipment, and data acquisition.
INFINEON PVD1354NPBF Solid-State Photovoltaic Relay Specifications:
- Case: Through-hole, DIP package
- Isolation Voltage: 4000 Vrms
- Maximum Load Voltage: 0-100 V DC
- Maximum Load Current: 550 mA
- Response Time: 150 ps on, 125 ps off at 25°C
- Off-State Resistance: 10¹° ohms
- dv/dt: 1000 V/µsec
- Control Current: 2-25 mA DC
- Input Voltage: Controlled via GaAlAs LED
- Output switch: HEXFET power MOSFET
- Operating Temperature Range: -40°C to +85°C
- Maximum Soldering Temperature: +260°C for 10 seconds
- Dielectric Strength (Input-Output): 4000 V RMS
- Storage Temperature: -40°C to +100°C
- Product Type: Solid-state photovoltaic relay

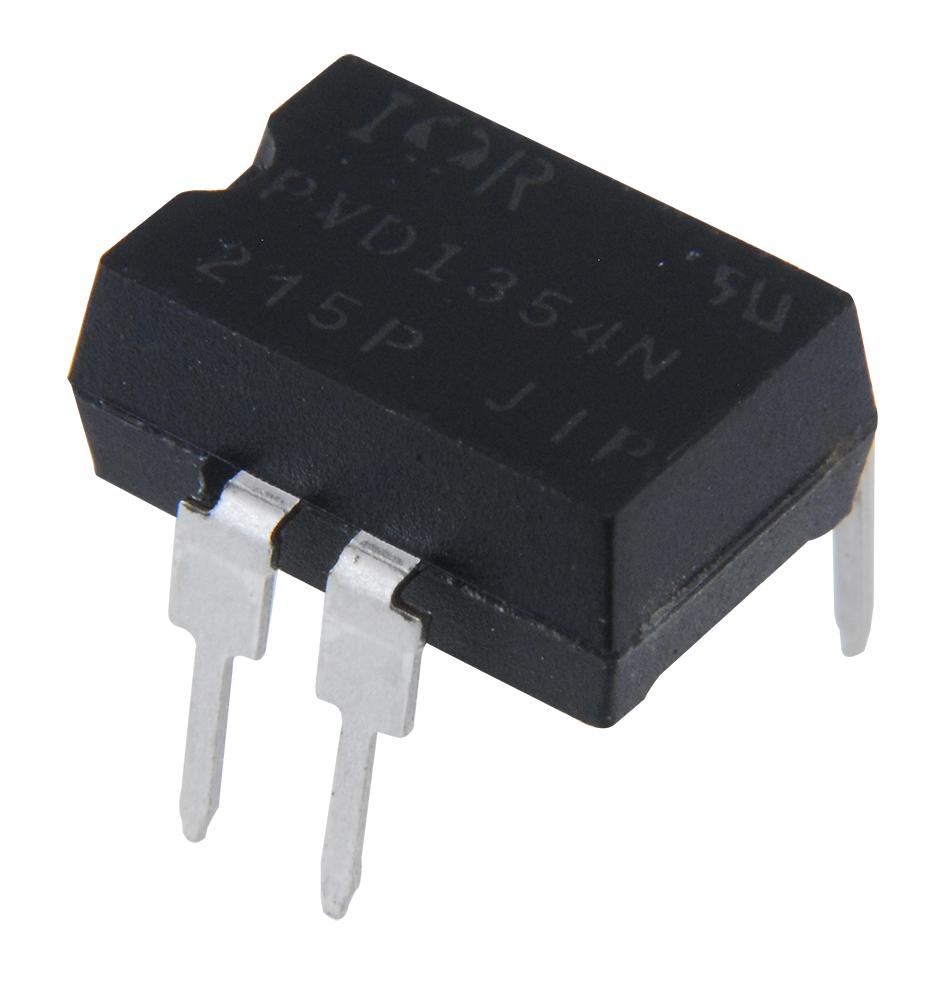

Buy the International PVD1354NPBF – Reliable Solid-State Photovoltaic Relay for Industrial Applications
Order the International PVD1354NPBF photovoltaic relay online today to ensure high-performance, bounce-free switching, and excellent isolation for your process control, data acquisition, or test equipment needs. This robust, solid-state relay offers fast response times, low power consumption, and reliable operation in demanding environments. Perfect for automation projects requiring high accuracy and longevity, the PVD1354NPBF provides excellent withstand voltage of 4000 Vrms and minimal thermal offset. Don’t miss your chance to enhance your system’s reliability—buy now for seamless integration and superior performance.
Buy International PVD1354NPBF now and experience unmatched reliability, fast switching, and long service life for diverse industrial applications.
