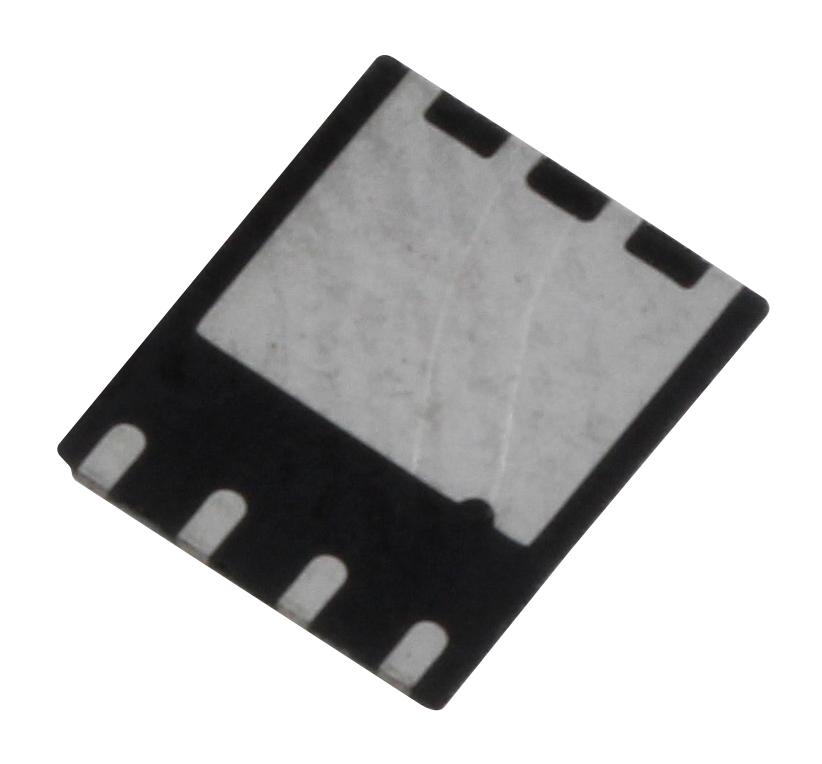

INFINEON IRFH7085TRPBF Power MOSFET
This single N-channel StrongIRFET™ power MOSFET is optimized for low-frequency high-performance applications. It features improved gate, avalanche, and dV/dt ruggedness, fully characterized capacitance and avalanche SOA, and an enhanced body diode with better dV/dt and dI/dt capabilities. Fully qualified under JEDEC standards, it offers a softer body diode for reduced switching loss and increased reliability. Suitable for DC motors, inverters, DC-DC converters, and power supplies using half-bridge and full-bridge topologies, it delivers high efficiency, rugged performance, and flexible application options for modern power systems.
INFINEON IRFH7085TRPBF Power MOSFET Specifications:
- Drain Current (Continuous, 25°C): 23A
- Drain Current (Package Limited): 1000A
- Pulsed Drain Current: 590A
- Gate-to-Source Voltage: +20V
- Drain-to-Source Breakdown Voltage: 60V
- Static Drain-to-Source On-Resistance: 32mΩ
- Gate Threshold Voltage: 2.1V to 3.7V
- Avalanche Energy (Thermally Limited): Specified
- Thermal Resistance (Junction to Case): 0.5°C/W (bottom), 20°C/W (top), 34°C/W (ambient)
- Package: PQFN 5x6 mm
- RoHS Compliant, JEDEC MSL1
- Max Tj: 125°C
- Body Diode Forward Voltage: 1.2V at 75A
- Input Capacitance (Ciss): 6460pF
- Output Capacitance (Coss): 560pF
- Reverse Transfer Capacitance (Cros): 380pF
- Peak Diode Recovery dv/dt: 3.0V/μs
Buy the Buy International StrongIRFET Power MOSFET Part Number IRFH7085TRPBF Online
Purchase the International StrongIRFET power MOSFET IRFH7085TRPBF online now to guarantee high performance, ruggedness, and reliable operation in your power management systems. This device offers advanced avalanche and dV/dt ruggedness, fully characterized capacitance, and a flexible, easy-to-replace form factor ideal for high-power inverters, motor drives, and DC-DC converters. Its fully qualified JEDEC standards, low Rds(on), and superior diode performance ensure efficiency and durability. Secure your supply chain and upgrade your electronics with this quality, high-capacity MOSFET available for quick online ordering.
Order your International StrongIRFET power MOSFET IRFH7085TRPBF today and enhance your power electronics with rugged, high-efficiency performance.
Frequently Asked Questions
Where can I buy INFINEON IRFH7085TRPBF?
You can click on the BUY or RFQ button to purchase IRFH7085TRPBF from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IRFH7085TRPBF?
You can download the IRFH7085TRPBF datasheet or visit the INFINEON website for support.
Who is the manufacturer of IRFH7085TRPBF?
INFINEON
