INFINEON IRFH7934TRPBF Power MOSFET

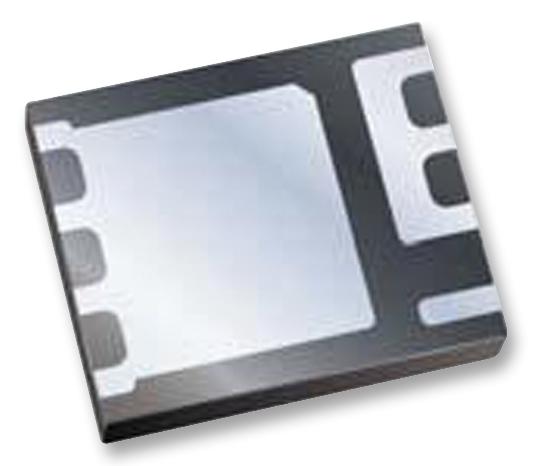

The IRFH7934PbF HEXFET Power MOSFET is designed for high-speed switching in advanced power applications such as synchronous buck converters and isolated DC-DC converters. It offers very low Rg(on) at 4.5V, low gate charge, and is fully characterized for avalanche voltage and current. Its lead-free construction and RoHS compliance ensure environmental safety and high reliability. The device features a large source lead for reliable soldering, a compact PQFN 5x6 mm package, and is tested for robustness, making it ideal for notebook processors and networking systems.
INFINEON IRFH7934TRPBF Power MOSFET Specifications:
- Drain-to-Source Voltage: 30 V
- Continuous Drain Current at 25°C: 24 A
- Continuous Drain Current at 70°C: 19 A
- Pulsed Drain Current: 76 A
- Power Dissipation at 25°C: 34 W
- Power Dissipation at 70°C: 2.0 W
- Gate-to-Source Voltage: +20 V
- Drain-to-Source On-Resistance: 29 to 35 mΩ (at Vos=10V), 42 to 54 mΩ (at Vos=4.5V)
- Gate Threshold Voltage: 1.35 to 2.35 V
- Total Gate Charge: 20 to 30 nC
- Avalanche Energy: Up to 97 mJ
- Body Diode Forward Voltage: around 1.0 to 1.10 V
- Maximum Operating Junction Temperature: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Case: 2.9°C/W
- Thermal Resistance Junction-to-Ambient: Not specified but typical for PQFN packages
- RoHS compliant and lead-free, qualified up to 260°C reflow
Buy the Buy International HEXFET Power MOSFET Part Number IRFH7934TRPBF Online
Enhance your power management and switch mode power supplies with the IRFH7934PbF HEXFET Power MOSFET. Featuring low Rg(on), low gate charge, and a compact PQFN 5x6 mm package, this device is ideal for high-efficiency applications like notebook processors and networking systems. Fully characterized for avalanche conditions and RoHS compliant, it ensures environmental safety and dependable performance. With a large source lead for reliable soldering and tested for robustness, this MOSFET provides optimal performance and durability for demanding electronic systems.
Order your International HEXFET Power MOSFET IRFH7934TRPBF today and ensure reliable high-speed switching for your power conversion projects.
