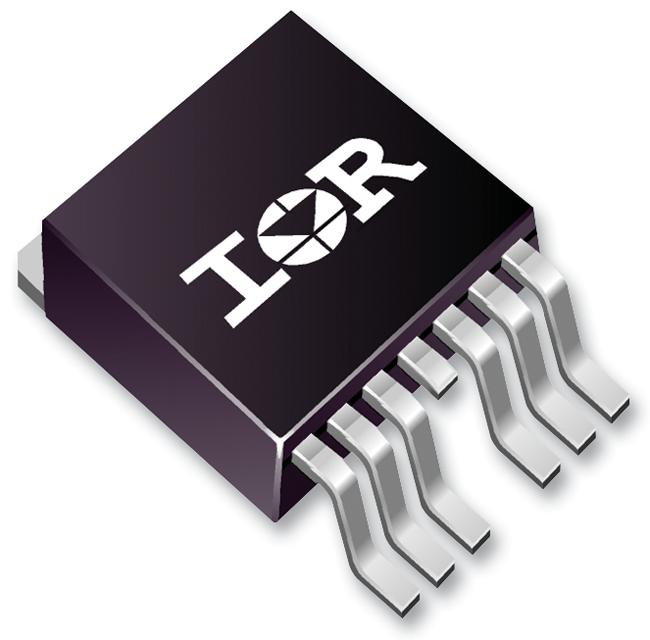

INFINEON IRFS7534TRL7PP High-Current Power MOSFET
The IRFS7534 power MOSFET is designed for high-current switching applications such as power supplies, motor drives, and inverters. It features low on-resistance, high avalanche energy, and excellent ruggedness for reliable operation in demanding industrial environments. Fully characterized capacitance and avalanche safe operating area enhance performance, with lead-free, ROHS-compliant construction. This P-channel HEXFET device offers fast switching, high efficiency, and durability, ideal for switching regulators, motor control, and power conversion circuits, ensuring optimal performance with minimal conduction and switching losses.
INFINEON IRFS7534TRL7PP High-Current Power MOSFET Specifications:
- Drain-to-Source Breakdown Voltage: 60 V
- Continuous Drain Current at 25°C: 255 A (silicon limited), 240 A (package limited)
- Pulsed Drain Current max: 790 A
- Power Dissipation: 290 W
- Gate-to-Source Voltage: ±20 V
- Soldering Temperature (10s): 300°C
- Avalanche Energy: 773 mJ (thermally limited)
- Rds(on): 1.60 to 1.95 Ω at Vgs = 10V and Id = 100A
- Gate Threshold Voltage: 2.1V (minimum)
- Body Diode Forward Voltage: 1.2 V at 100A
- Switching Times: Turn-On delay 140 ns, Rise time 120 ns; Turn-Off delay 195 ns, Fall time 86 ns
- Thermal Resistance Junction-to-Case: 0.51°C/W
- Junction-to-Ambient: 40°C/W
- Lead-Free, RoHS compliant construction
- Qualification Level: JEDEC JESD47F, MSL1
- Package: D*Pak-7PIN (TO-263CB), outline conforming to JEDEC standards
Buy the International Rectifier IRFS7534TRL7PP – Reliable Power MOSFET for Industrial Applications
Order the International Rectifier IRFS7534 Power MOSFET online today and experience outstanding performance in power switching and motor drive applications. This high-current, low on-resistance HEXFET device offers excellent avalanche ruggedness, fast switching times, and lead-free, RoHS-compliant construction, making it ideal for industrial power supplies, inverter systems, and motor controllers. With its durable design and reliable performance, it helps reduce energy losses while ensuring long-term durability and efficiency in demanding operational conditions. Purchase now for superior power management.
Get International Rectifier IRFS7534TRL7PP today—designed for high-current switching, robust performance, and long-lasting durability in industrial environments.
