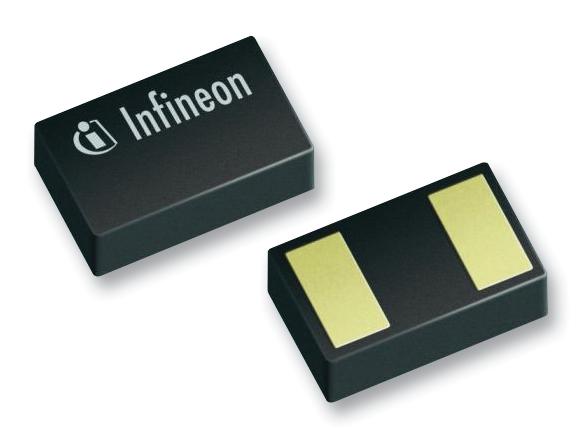

INFINEON BAR6402ELE6327XTMA1 RF Diodes
The Cinfineon BAR64 series consists of silicon PIN diodes designed for RF switching and attenuation applications. These high-voltage current-controlled RF resistors operate above 1 MHz up to 6 GHz, exhibiting very low capacitance at zero volt reverse bias, especially above 1 GHz with typical capacitance of 0.17 pF. They feature low forward resistance around 2.1 ohms at 10 mA and provide very low signal distortion. The package is Pb-free and RoHS compliant, qualified under AEC Q101, suitable for high-frequency RF circuit design and switching applications.
INFINEON BAR6402ELE6327XTMA1 RF Diodes Specifications:
- Maximum Reverse Voltage: 150 V
- Forward Current: 100 mA
- Total Power Dissipation: 250 mW
- Junction Temperature: 150°C
- Operating Temperature Range: -55°C to 125°C
- Storage Temperature Range: -55°C to 150°C
- Diode Capacitance at 1 MHz and 20V: 0.35 pF (typ.)
- Capacitance at 0V and 1.8 GHz: 0.17 pF (typ.)
- Reverse Parallel Resistance at 100 MHz: 10 kΩ
- Forward Resistance at 100 MHz and 10 mA: 2.1 Ω
- Insertion Loss at 1.8 GHz and 5 mA: 0.23 dB
- Package Types: SC79, SOT323, SOT23, TSLP-2-19, and others
- RoHS compliant and Pb-free
Buy the Cinfineon BAR64 U–2013– Reliable RF Diodes for Industrial Applications
Purchase Cinfineon RF diodes today to ensure reliable high-frequency performance in RF switching and attenuation applications. Designed to operate above 1 MHz up to 6 GHz, these diodes feature very low capacitance, low forward resistance, and are RoHS compliant. Perfect for industrial, telecommunication, and electronic circuit design, they ensure low signal distortion and durable long-term operation. Easy online ordering guarantees quick delivery, making them ideal choice for manufacturing engineers and RF system designers seeking precision components for demanding technical environments.
Get Cinfineon BAR64 today—built for precision and long-lasting durability in RF switching and attenuation circuits.
Frequently Asked Questions
Where can I buy INFINEON BAR6402ELE6327XTMA1?
You can click on the BUY or RFQ button to purchase BAR6402ELE6327XTMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BAR6402ELE6327XTMA1?
You can download the BAR6402ELE6327XTMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BAR6402ELE6327XTMA1?
INFINEON
