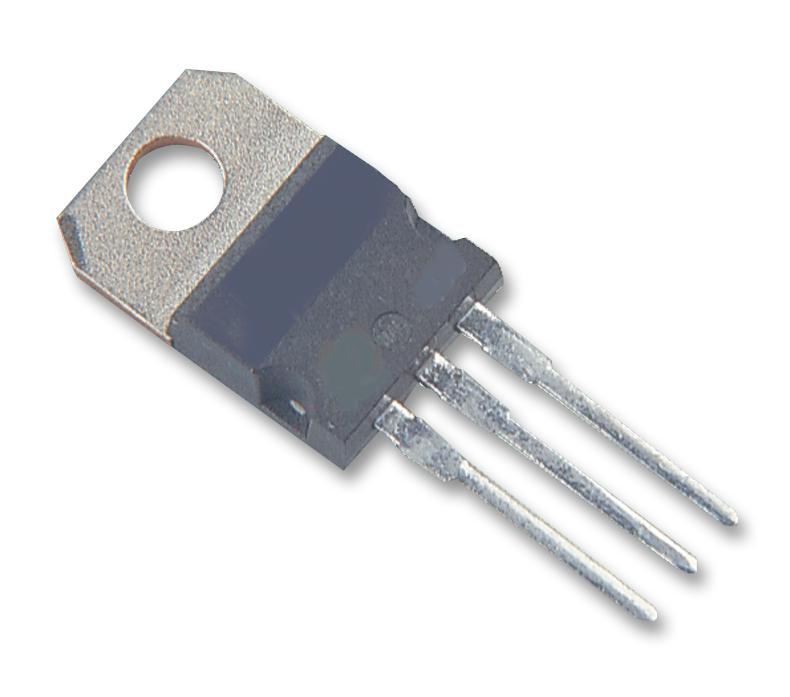

INFINEON IRLB8721PBF HexFET Power MOSFET
The IRLB8721PBF is a 30V N-channel HEXFET Power MOSFET featuring extremely low on-resistance and fast switching capabilities, utilizing Trench MOSFET technology. It is suitable for high-frequency synchronous buck converters for computer processor power, UPS and inverter applications, as well as high-frequency isolated DC-DC converters with synchronous rectification for telecommunications and industrial use. Key features include very low RDS(on) at 4.5V VGS, ultra-low gate impedance, and fully characterized capacitance, avalanche voltage, and current. Applications span power management, computer peripherals, communications, networking, and industrial systems. Delivery may fluctuate and discounts are not available.
INFINEON IRLB8721PBF HexFET Power MOSFET Specifications:
- Drain-to-Source Voltage: 30 V
- Continuous Drain Current @ Tj=25°C: 62 A
- Continuous Drain Current @ Tj=100°C: 44 A
- Pulsed Drain Current: 250 A
- Maximum Power Dissipation: 65 W at Tj=25°C
- Junction-to-Case Resistance: 23 °C/W
- Case-to-Sink Resistance: 0.5 °C/W
- Junction-to-Ambient Resistance: 62 °C/W
- Gate Threshold Voltage: 1.35 - 1.80 V
- Gate Charge (Q): 76 nC
- Drain-to-Source Breakdown Voltage: 30 V
- Static RDS(on): 6.5 mΩ at 10V
- Avalanche Energy: 8 mJ
- Body Diode Forward Voltage: typical 1.0 V at 25A
- Reverse Recovery Time: 16 ns
- Storage Temperature Range: -55°C to +175°C
- Operating Junction Temperature: up to 175°C
- Soldering Temperature (10 sec): 300°C
- Lead-Free construction
Buy the International Series HEXFET Power MOSFET: IRLB8721PBF
Order the International IRLB8721PBF today for your power conversion and management needs. This high-performance 30V N-channel HEXFET MOSFET offers ultra-low RDS(on), fast switching speeds, and robust electrical characteristics, making it ideal for use in high-frequency synchronous buck converters, UPS systems, inverter designs, and industrial power supplies. Its fully characterized capacitance and avalanche ratings ensure reliability in demanding applications. Take advantage of quick online ordering to enhance your projects with trusted, high-quality components designed for efficiency and durability.
Get International IRLB8721PBF today—built for precision, high-frequency switching, and reliable power management.
