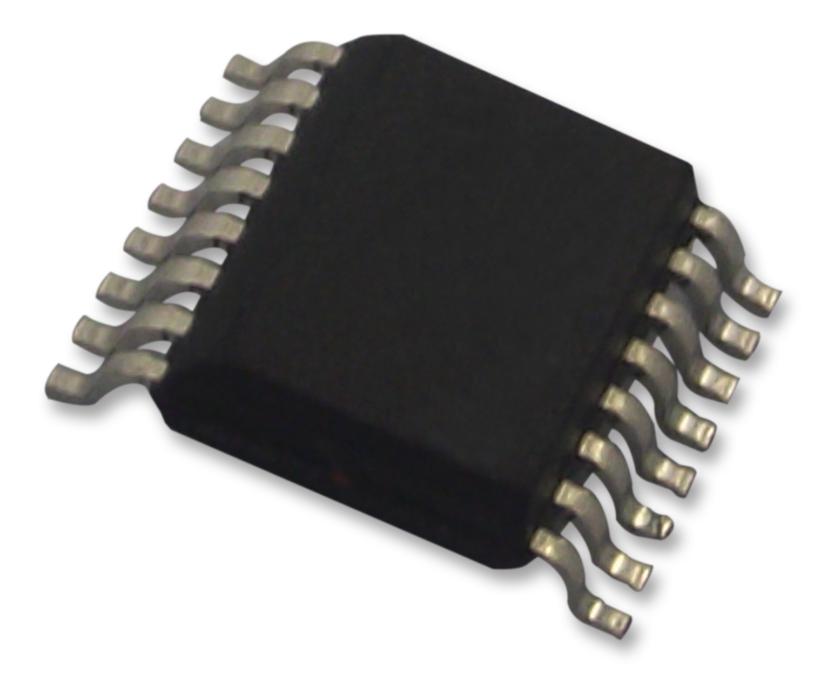

INFINEON TLE5109A16E2210XUMA1 Magnetic Angle Sensor
The TLE5x09A16(D) is an advanced analog angle sensor utilizing AMR and GMR technology, designed for automotive and industrial applications requiring high accuracy and reliability. It features single and dual die configurations with separate supply pins for top and bottom sensors, offering 180° (AMR) and 360° (GMR) contactless angle measurement. With low power consumption, fast startup, and immunity to airgap variations, it is suitable for systems like electric power steering, brushless motors, pedals, and rotary switches, ensuring precise angular position sensing in safety-critical environments.
INFINEON TLE5109A16E2210XUMA1 Magnetic Angle Sensor Specifications:
- Supply Voltage: 3.3V to 5.5V
- Ambient Temperature Range: -40°C to 125°C
- Angle Measurement Range: 0 to 180° (AMR), 0 to 360° (GMR)
- Power Consumption: Typically 6-10.5 mA (AMR), 7-10.5 mA (GMR)
- Output Noise: 5 mV RMS
- Output Delay Time: 9 µs
- Full-scale Magnetic Induction: 24-60 mT (InX, Y), 26-100 mT (Inx/V)
- Max Magnetic Field Induction: 200 mT
- Error Offsets: ±3° (displacement), ±12° (non-orthogonality for GMR)
- Package: PG-TDSO-16, Lead-free, SMT
- Moisture Sensitivity Level: MSL 3
- ESD Protection: ±4 kV (HBM), ±0.75 kV (CDM)
