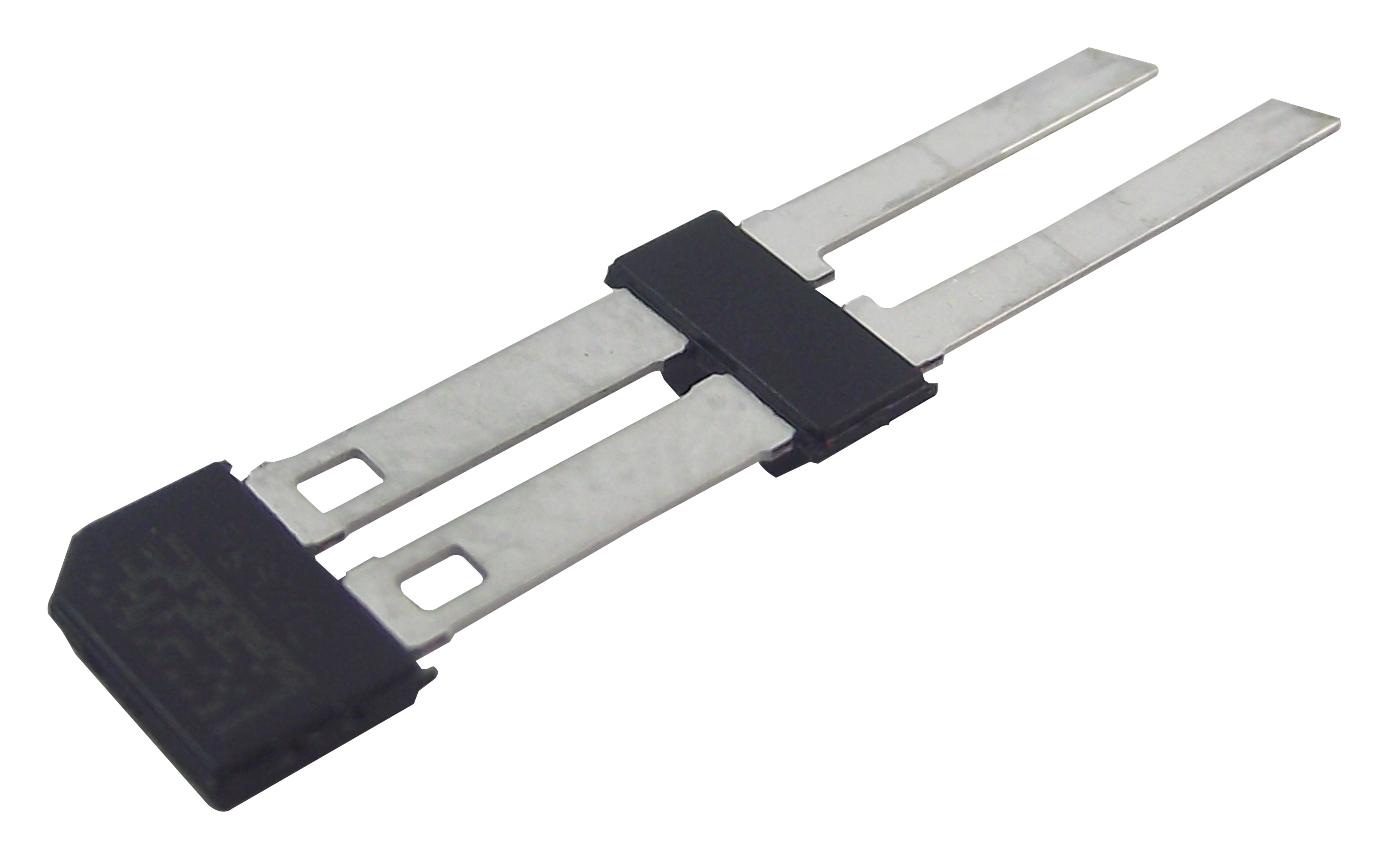

INFINEON TLE5046ICAKLRHALA1 Wheel Speed Sensor
The TLE5046iC is a highly accurate wheel speed sensor with direction detection, designed for automotive safety systems such as ABS and tire pressure monitoring. It features integrated giant magneto resistance technology, wide operating temperature range from -40°C to 190°C, and high sensitivity to magnetic fields. The sensor offers high jitter performance, robustness against external magnetic disturbances, and compliance with ISO 26262 ASIL B(D) standards. Its compact 5x3mm package simplifies integration and enhances mechanical durability in harsh automotive environments.
INFINEON TLE5046ICAKLRHALA1 Wheel Speed Sensor Specifications:
- Supply Voltage: 4.25 V to 20 V
- Operating Temperature: -40°C to 190°C
- Magnetic flux density max_x: 250 mT
- Magnetic flux density max_y,z: 500 mT
- Magnetic input signal amplitude: 70-110 HT = 99% criterion
- Magnetic induction amplitude: -25 to 25 mT at each GMR sensing element
- External magnetic disturbance immunity: up to 2 mT
- Jitter performance: 0.02%
- Package Size: 5x3 mm
- Synchronization: differential sensing principle
- Protocols supported: PWM, AK
- Mechanical robustness: resistant to mechanical stress, no external capacitor needed
- Compliance: ISO 26262 ASIL B(D)
- Additional features: watchdog concept, immunity during start-stop, high air-gap performance
Buy the Infineon TLE5046iC – Reliable Wheel Speed and Direction Sensor for Industrial Applications
Discover the high-performance and rugged wheel speed sensor that offers accurate speed and direction detection for automotive safety systems. The TLE5046iC features integrated giant magneto resistance technology, wide temperature tolerance from -40°C to 190°C, and exceptional immunity to external magnetic interference. Its compact 5x3mm package simplifies installation and enhances durability. Designed according to ISO 26262 ASIL B(D), this sensor ensures reliable operation in safety-critical vehicle applications. Order online today for fast delivery of this trusted automotive component.
Get Infineon TLE5046iC today—designed for precise wheel speed measurement and automotive safety in harsh conditions.
Frequently Asked Questions
Where can I buy INFINEON TLE5046ICAKLRHALA1?
You can click on the BUY or RFQ button to purchase TLE5046ICAKLRHALA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLE5046ICAKLRHALA1?
You can download the TLE5046ICAKLRHALA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLE5046ICAKLRHALA1?
INFINEON
