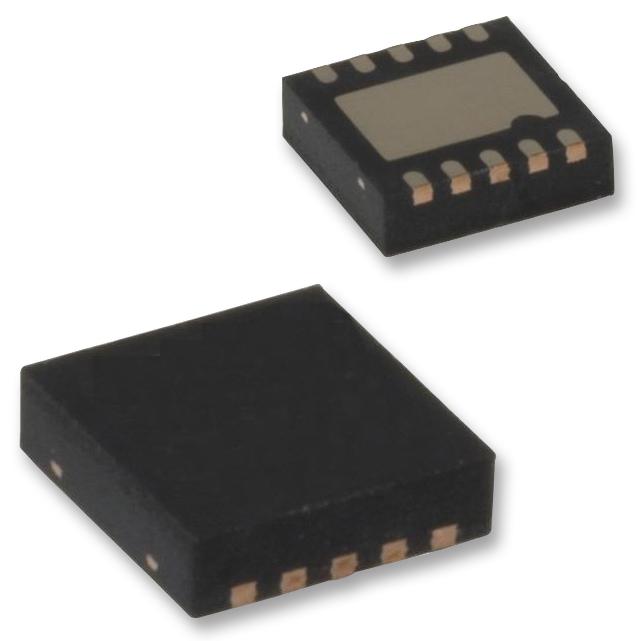

INFINEON TLS115D0LDXUMA1 Voltage Tracker
The TLS115D0 is a high-precision, low-dropout voltage tracking regulator designed for automotive and industrial applications. It features excellent accuracy, wide input voltage range up to 45 V, adjustable output voltage down to 2.0 V, and protection functions including reverse polarity, short circuit, and overtemperature shutdown. Suitable for powering sensors, ECUs, and high-precision systems, it offers stable operation with ceramic capacitors and minimal quiescent current in standby mode. Its robust design ensures reliable performance in harsh environments with temperature ranges from -40°C to +150°C.
INFINEON TLS115D0LDXUMA1 Voltage Tracker Specifications:
- Output Current: up to 150 mA
- Input Voltage Range: -16 V to 45 V
- Output Voltage: adjustable down to 2.0 V
- Dropout Voltage: 250 to 500 mV at 150 mA load
- Temperature Range: -40°C to +150°C
- Protection: reverse polarity, short circuit, overtemperature shutdown
- Power Good output: indicates overvoltage and undervoltage conditions
- Package options: PG-DSO-8 EP, PG-TSON-10
- RoHS compliant and AEC-Q100 qualified
- Power supply ripple rejection: 85 dB at 100 Hz
- Output capacitor: ceramic recommended, ESR <5Ω
- Reverse current in OFF mode: max 17 mA
- ESD susceptibility: 4 kV (HBM), 1 kV (CDM)
Buy the Infineon Series Voltage Tracker: TLS115D0 for Automotive and Industrial Applications
Order the Infineon TLS115D0 high precision voltage tracker online today to benefit from top-tier reliability and protection features. Designed for automotive and industrial systems, this device offers adjustable output voltage down to 2.0 V, wide input voltage range up to 45 V, and advanced protection functions including reverse polarity, short circuit, and overtemperature shutdown. Its robust construction ensures stable performance in harsh environments with temperatures spanning from -40°C to +150°C. Easy to implement with ceramic capacitors and RoHS compliance, it is ideal for powering sensors, ECUs, and high-precision modules efficiently and safely.
Buy Infineon TLS115D0 low-dropout voltage tracking regulator now and ensure reliable power management with high accuracy and protection features.
Frequently Asked Questions
Where can I buy INFINEON TLS115D0LDXUMA1?
You can click on the BUY or RFQ button to purchase TLS115D0LDXUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLS115D0LDXUMA1?
You can download the TLS115D0LDXUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLS115D0LDXUMA1?
INFINEON
