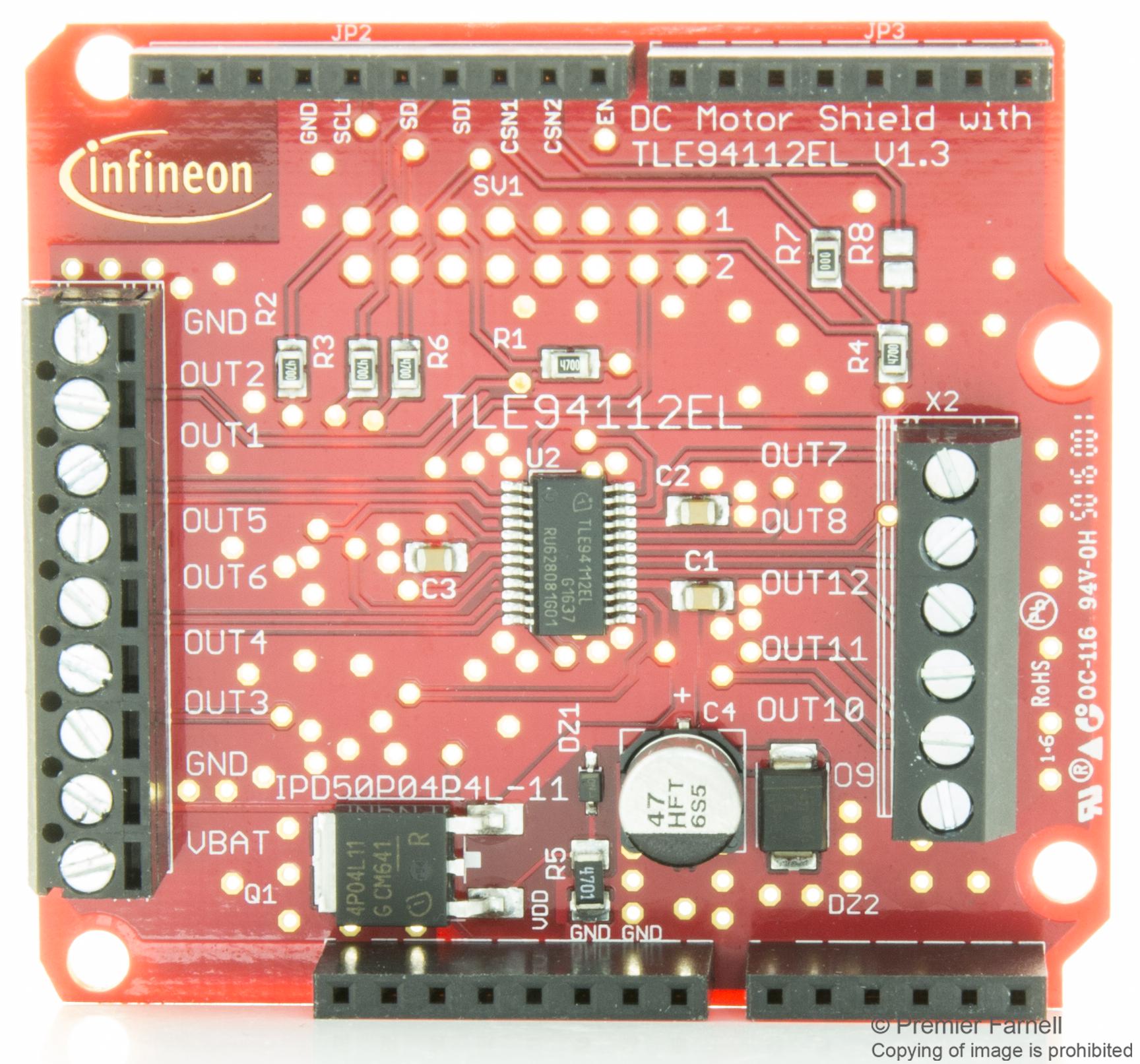

INFINEON TLE94112ELSHIELDTOBO1 DC Motor Control Shield
This DC motor control shield for Arduino is equipped with the TLE94112EL, a twelve-fold half-bridge driver with integrated power stages. It supports bi-directional motor control and features a variety of connections including signal and power grounds, battery supply from 5.5V to 20V, and logic supply at 5V. The shield offers dedicated connectors for motor outputs, SPI communication interfaces, and enable control via GPIO. Designed for reliable and efficient motor operation, it is suitable for engineering, hobbyist, and educational projects requiring precise motor management.
INFINEON TLE94112ELSHIELDTOBO1 DC Motor Control Shield Specifications:
- Controller: TLE94112EL half-bridge driver with integrated power stages
- Input Voltage: 5.5V to 20V (battery supply), 40V absolute max.
- Logic Supply Voltage: 5V (Arduino compatible)
- Output Connections: 12 half-bridge outputs for motor control
- Control Interface: SPI (SCLK, SDI, SDO), GPIO for enable
- Power Grounds: PWR GND, Signal Grounds: SGND
- Battery Voltage: supports up to 40V
- Connectors: OUT1-12, CSN1, CSN2, EN, SCLK, SDI, SDO
- Dimensions: Compact PCB design optimized for stacking and integration
- Application: Bi-directional DC motor drive, robotics, automation projects
Buy the Buy Cinfineon DC Motor Control Shield Part Number TLE94112ELSHIELDTOBO1 Online
Enhance your Arduino projects with this high-quality DC Motor Control Shield featuring the TLE94112EL driver. It offers bi-directional control, 12 output channels, an SPI interface, and supports motor voltages from 5.5V to 20V, delivering dependable performance. Ideal for robotics and automation, the shield is easy to integrate thanks to clearly labeled connectors and GPIO control. Purchase online today to elevate your motor control capabilities with this advanced, compact solution ensuring precise and efficient operation.
Buy Cinfineon TLE94112ELSHIELDTOBO1 now and experience unmatched reliability and high-performance motor control for your Arduino projects.
Frequently Asked Questions
Where can I buy INFINEON TLE94112ELSHIELDTOBO1?
You can click on the BUY or RFQ button to purchase TLE94112ELSHIELDTOBO1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLE94112ELSHIELDTOBO1?
You can download the TLE94112ELSHIELDTOBO1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLE94112ELSHIELDTOBO1?
INFINEON
