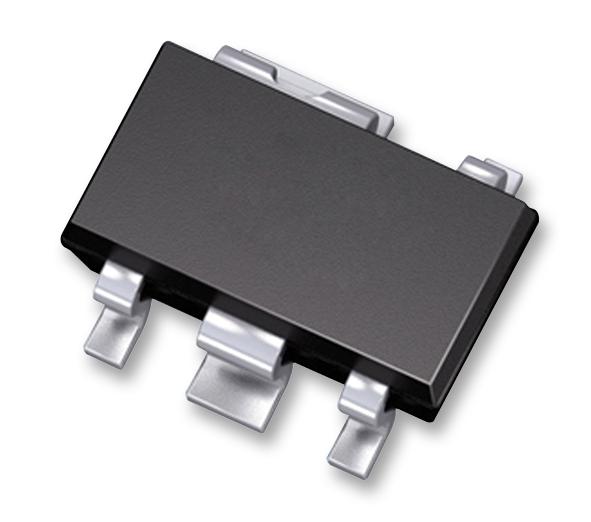

INFINEON TLS102B0MBHTSA1 Voltage Tracker
The TLS102B0 is a high-precision, low-dropout voltage tracking regulator designed for automotive and industrial applications. It features 20 mA current capability, very high accuracy, and an output voltage adjustable down to 2.0 V. The device is equipped with protection functions, including reverse polarity, short circuit, and overtemperature protections, ensuring reliable operation under severe conditions. Suitable for sensor supplies, power management, and voltage replication, this monolithic IC operates within a wide temperature range of -40°C to 150°C, making it ideal for automotive ECU and powertrain systems.
INFINEON TLS102B0MBHTSA1 Voltage Tracker Specifications:
- Input voltage range: 4V to 40V
- Output voltage adjustable down to 2.0V
- Output current capability: 20 mA
- Dropout voltage: typ. 120 mV at 20 mA
- Operating temperature: -40°C to 150°C
- Package: PG-SCT595-5
- Protection functions: reverse polarity, short circuit, overtemperature
- Thermal resistance: Junction to ambient approx. 84 K/W (on 2s2p board)
- Absolute max voltages: Vin -16V to 45V, Vout max 45V
- ESD protection: 2kV HBM, 1kV CDM
- RoHS compliant, Pb-free
Buy the Infineon TLS102B0 – Reliable High Precision Voltage Tracker for Industrial Applications
Discover the TLS102B0 high precision voltage tracker designed for automotive and industrial use. With 20 mA current capability, adjustable output down to 2V, and comprehensive protective features, this device ensures dependable power regulation even in severe conditions. Ideal for sensors, ECUs, and power management, it supports wide temperature ranges and features RoHS compliance. Easy to integrate with recommended ceramic and electrolytic capacitors, the TLS102B0 guarantees stable, accurate tracking and efficient performance for demanding applications worldwide.
Buy Infineon TLS102B0 now and experience unmatched reliability and high accuracy in automotive and industrial power management systems.
