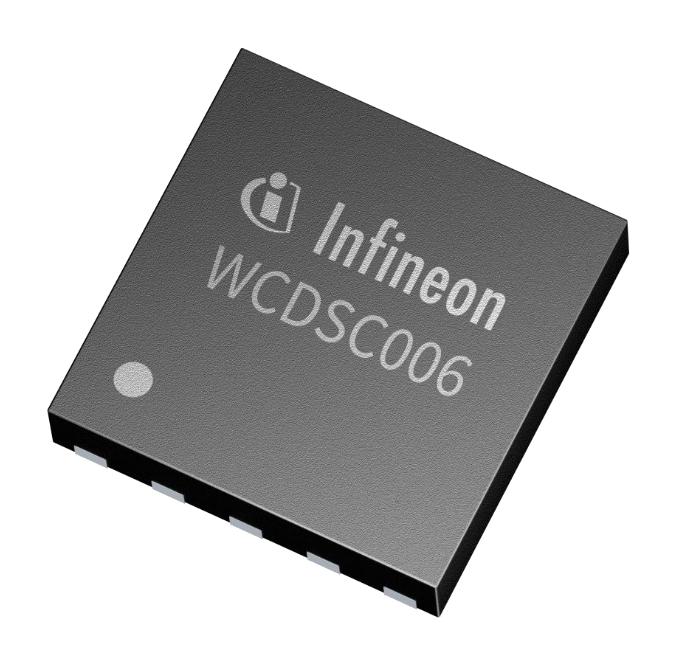

INFINEON WCDSC006XUMA1 Half-bridge driver module
The WCDSC006 is a high-performance half-bridge driver tailored for dual MOSFET control in inverter configurations. It features independent high-side and low-side TTL logic inputs, with input pin robustness ranging from 0.3V to 7V. The device integrates a bootstrap diode supporting up to 60V bootstrap voltage, providing fast switching times and robust drive capabilities with 2A source and 4A sink currents. Designed for industrial applications, it ensures safety with deadtime enforcements and undervoltage lockout, making it ideal for wireless charging in high-efficiency inverter circuits.
INFINEON WCDSC006XUMA1 Half-bridge driver module Specifications:
- Supply Voltage VDD: 4.15V to 5.5V
- High Side Bootstrap Voltage: Up to 60V
- Input Voltage: 0.3V to 7V
- Peak Source Current: 2A
- Peak Sink Current: 4A
- Undervoltage Lockout threshold: approximately 4.1V
- Deadtime: 5 ns (typ)
- Gate driver outputs: low impedance s < 1.07Ω sourcing, < 0.43Ω sinking
- Operating Junction Temperature: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Package: PG-WSON-10 with exposed pad
- Max Bootstrap Voltage: 60V
- Switching Frequency Support: up to several hundred kHz
- Propagation Delay: approximately 40 ns
- Thermal Resistance (Junction to Case): ~7°C/W
- Built-in bootstrap diode with reverse recovery time ~50 ns
