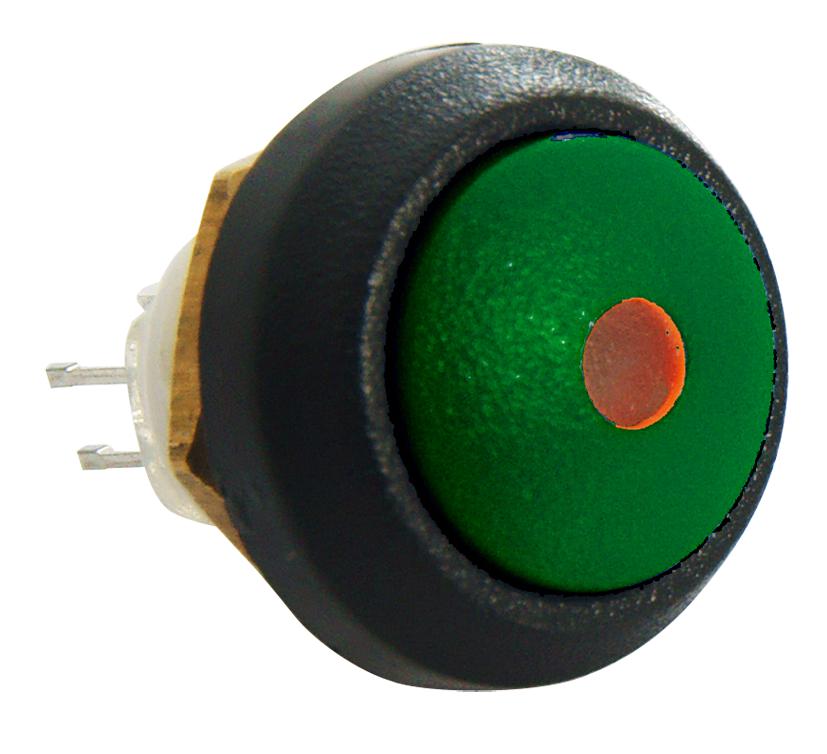

ITW Switches 481RBRGRB Sealed Pushbutton Switch
This rugged 12mm sealed pushbutton switch series offers diverse mounting options, LED illumination, and durable IP67 sealing, suitable for industrial, outdoor, and transportation applications. Available in momentary or maintained action, with various colors and terminal types. Designed for long life with gold or silver contacts, it features a compact size, high ingress protection, and is ideal for medical, office, food processing, and outdoor control systems. The series combines robust construction with versatile electrical and mechanical features, ensuring reliable performance in harsh environments.
ITW Switches 481RBRGRB Sealed Pushbutton Switch Specifications:
- Actuator Ingress Protection: IP67
- Operating Temperature: -40°C to +85°C
- Current Rating (resistive) momentary: 50mA @ 12VDC, 100K cycles
- Current Rating (resistive) maintained: 10mA @ 12VDC, 200K cycles
- Dielectric Strength: 1,000 VAC
- Insulation Resistance: 1G Ohm
- Contact Resistance: 50 m Ohms
- Wire Leads: UL Style 1007, 26 AWG stranded
- Panel Thickness Compatibility: Bushing mounting 0.5-3.0 mm, Snap-fit 1.3-3.0 mm
- Switch Types: SPST-NO-DB, Momentary or Maintained
- Button Travel: 2.3 mm
- Operating Force: 3 N (306 g)
- Nut Torque (max): 6 kgf-cm
- Environmental Standard: RoHS Compliant
- Additional Features: Choice of LED colors, sealed to IP67, various mounting options, multi-color buttons, and robust metal or plastic bezels
Buy the BrandName 481RBRGRB – Reliable Sealed Pushbutton for Industrial Applications
Discover the durable and versatile sealed pushbutton switch designed for industrial, outdoor, and transportation applications. Featuring IP67 sealing, LED illumination options, and a compact 12mm size, this switch provides long-lasting performance for control panels, machinery, and outdoor equipment. It offers momentary and maintained actions, various colors, and secure mounting options, ensuring reliability in demanding environments. Shop online now to enhance your projects with this rugged switch built for longevity, safety, and seamless operation in tough conditions!
Order your BrandName Series 481RBRGRB sealed pushbutton switch today and ensure your control systems operate reliably even in harsh environments.
Frequently Asked Questions
Where can I buy ITW Switches 481RBRGRB?
You can click on the BUY or RFQ button to purchase 481RBRGRB from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 481RBRGRB?
You can download the 481RBRGRB datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 481RBRGRB?
ITW Switches
