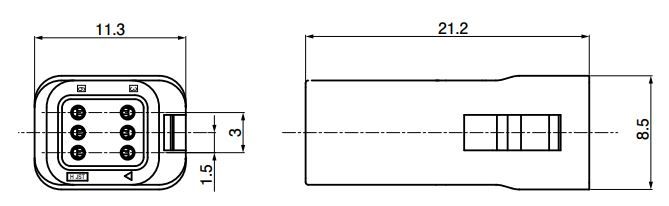

JST 06TZWPVWKNN waterproof connector
This 6-position waterproof connector from the ZWP series features a 1.5mm pitch, rated for 50V, suitable for 28-24 AWG wires with tin-plated copper contacts. It incorporates an inner lock structure for secure fastening and has a rugged design rated for Grade 7 ingress protection (IPX7), ensuring excellent waterproof performance. With a temperature range of -25°C to +85°C, it caters to various industrial environments. The connector's compact form factor and reliable electrical specifications make it ideal for applications requiring high durability and waterproof sealing, complying with RoHS2 standards.
JST 06TZWPVWKNN waterproof connector Specifications:
- Number of Circuits: 6
- Model Number: 06TZWPVWKNN
- Pitch: 1.5 mm
- Wire Range: AWG #28 to #24 (0.08 to 0.21 mm conductor diameter)
- Rated Voltage: 50 V AC/DC
- Rated Current: 2 A AC/DC
- Contact Resistance: Initial 10 mΩ max, after environmental tests 20 mΩ max
- Insulation Resistance: 500 MΩ min.
- Withstanding Voltage: 500 VAC for 1 minute
- Temperature Range: -25°C to +85°C
- Waterproof Performance: Grade 7 (IPX7, IEC 60529)
- Contact Material: Copper alloy, tin-plated
- Housing Material: PBT, UL94V-0, black
- Seal Material: Silicone rubber, brown
- RoHS2 Compliant
- Application: Suitable for insulated copper stranded wires with tin plating
- Applicable Wire Size: AWG #28 to #24
- Dimensional Units: mm
Buy the JST 06TZWPVWKNN – Reliable Waterproof Connector for Industrial Applications
Purchase the JST 06TZWPVWKNN waterproof connector online today and benefit from its reliable waterproof performance, compact design, and secure electrical connections. Ideal for industrial environments, this connector features a 1.5mm pitch, rated for 50V, with tin-plated copper contacts suitable for 28-24 AWG wires. Its Grade 7 ingress protection means it can withstand water exposure, making it perfect for outdoor and harsh conditions. Order now to enhance your project's durability and ensure long-lasting, waterproof electrical connections with ease.
Order your JST 06TZWPVWKNN waterproof connector today and ensure reliable, waterproof connections for your industrial projects requiring high durability.
