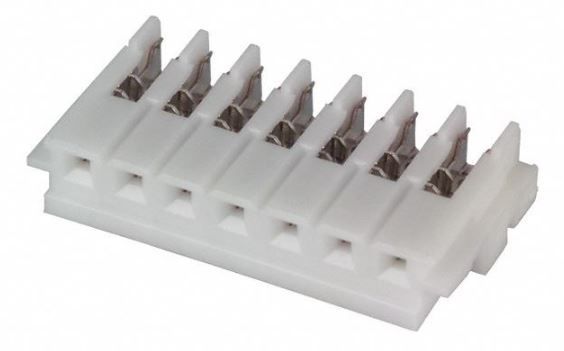

JST 07HR6SPN socket connector
This 7-position female socket connector receptacle from the HR series features a 2.5mm pitch and a free hanging design with a detent lock for secure, reliable connections. Rated for 26 AWG wire with tin coating, it offers high-density capability with a thin, in-line insulation displacement design. The connector handles 2A at up to 250V and withstands temperatures from -25°C to +85°C. Suitable for PCB mounting on boards 0.8 to 1.6mm thick, it meets RoHS standards and provides consistent performance in electrical and industrial applications.
JST 07HR6SPN socket connector Specifications:
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/10mΩ max., after environmental testing/20mΩ max.
- Insulation resistance: ≥ 1,000MΩ
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: UL1007, AWG #28, #26, #24, conductor/7 strands, tin-coated
- Insulation O.D.: 1.0 to 1.5mm
- Applicable PCB thickness: 0.8 to 1.6mm
- Housing material: PA 66, UL94V-0
- Recognized: E60389, LR20812
- Standards: RoHS compliant, recognized and certified
Buy the Buy JST HR Series 2.5mm Pitch Female Socket Part Number 07HR6SPN Online
Purchase the JST HR series socket connector, model 07HR6SPN, designed for high-density PCB assemblies and industrial wiring. This 2.5mm pitch female receptacle features a detent lock for secure connections, rated for 26 AWG wire up to 2A and 250V. It operates effectively between -25°C and +85°C, ensuring reliable performance in demanding environments. Made with durable materials, including a PA 66 housing, and compliant with RoHS standards, this connector is ideal for automation, electronics, and control system applications. Order online now for quick, dependable delivery.
Get JST HR Series 07HR6SPN today—designed for secure, reliable connections with high-density PCB compatibility.
Frequently Asked Questions
Where can I buy JST 07HR6SPN?
You can click on the BUY or RFQ button to purchase 07HR6SPN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 07HR6SPN?
You can download the 07HR6SPN datasheet or visit the JST website for support.
Who is the manufacturer of 07HR6SPN?
JST
