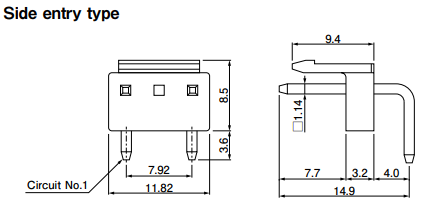

JST B2P3VHBLFSN Connector Header
The VH Series connector header features a 2-position through-hole design with a 7.92mm pitch, rated for 250V AC/DC, and finished with tin plating for corrosion resistance. It supports applications requiring secure, reliable electrical connections in power supply circuits and electronic devices. Designed with a compact structure, it ensures safe and stable mounting on PCBs, with a maximum current of 7A at -25°C to +85°C. Its RoHS compliance and robust construction make it suitable for industrial and consumer electronics. Perfect for ensuring high current capacity and safety in power distribution and automation systems.
JST B2P3VHBLFSN Connector Header Specifications:
- Pitch: 7.92mm
- Number of Circuits: 2
- Voltage Rating: 250V AC/DC
- Current Rating: 7A AC/DC
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial/10mΩ max, After environmental testing/20mΩ max
- Insulation Resistance: ≥1,000MΩ
- Withstanding Voltage: 1,200V AC/minute
- Applicable Wire Range: AWG #20 to #18
- Board Thickness Compatibility: 1.6mm
- Finish: Tin-plated (reflow treatment)
- Material: Phosphor bronze for contacts, PA 66 for housings
- RoHS Compliant
- Standards: UL Recognized E60389, LR20812, R75122
Buy the JST Series VH Connector Header: B2P3VHBLFSN
Discover the JST VH Series connector header, designed with a 7.92mm pitch, rated for 250V and 7A. This high-quality, tin-plated connector ensures secure and reliable connections in power supply and electronic circuits. Its compact design allows easy PCB mounting with a board thickness of 1.6mm, while its RoHS compliance guarantees environmentally safe usage. Perfect for industrial, automation, and consumer electronics, this connector provides excellent electrical performance, durability, and safety for demanding applications.
Get JST VH Series connector header B2P3VHBLFSN today—built for reliable electrical connections in power and automation systems.
Frequently Asked Questions
Where can I buy JST B2P3VHBLFSN?
You can click on the BUY or RFQ button to purchase B2P3VHBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B2P3VHBLFSN?
You can download the B2P3VHBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B2P3VHBLFSN?
JST
