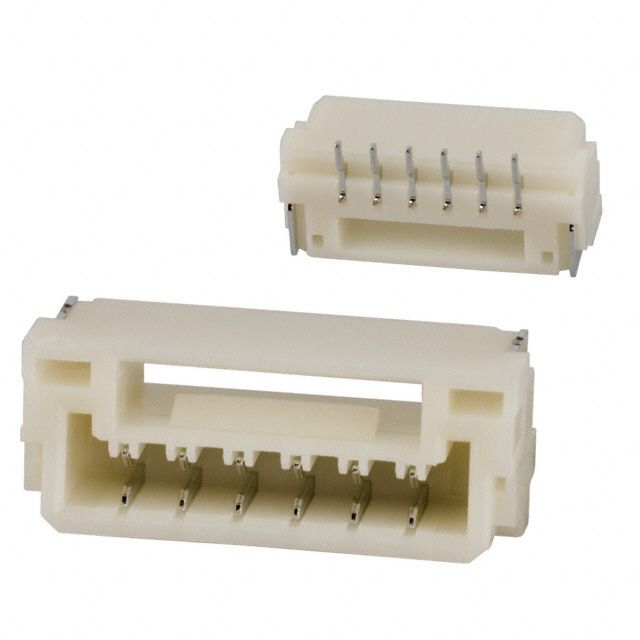

JST BM06BGHSTBTLFSN Connector Header
The GH Series 6-position surface mount connector header with a 1.25mm pitch is designed for reliable electrical connections in small electronics and LCD equipment. It features a secure locking ramp for stable mating, rated for 50V AC/DC and 1.0A current with AWG #26 conductors, ensuring safe operation. Made of UL94V-0 PBT in natural color, it withstands temperatures from -25°C to +85°C. Its compact design and RoHS compliance make it ideal for compact, environmentally friendly electronic devices requiring secure and easy-to-mate connectors.
JST BM06BGHSTBTLFSN Connector Header Specifications:
- Current rating: 1.0A AC/DC (AWG #26)
- Voltage rating: 50V AC/DC
- Temperature range: -25°C to +85°C
- Material: PBT, UL94V-0, natural (white)
- Insulation resistance: 100MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #30 to #26, insulation O.D. 0.8 to 1.0mm
- Contact resistance: low, compliant with RoHS
- Dimensions: 1.25mm pitch, secure locking ramp, designed for surface mount applications
- RoHS compliant, suitable for eco-friendly designs
Buy the JST 1.25mm Pitch – Reliable Connector for Industrial Applications
Enhance your electronic projects with the JST GH Series 6-position connector header. Featuring a 1.25mm pitch and a secure locking ramp, this connector ensures stable, easy mating for small electronics, LCD displays, and compact devices. Rated at 50V and 1A, it is built with high-quality UL94V-0 PBT material for durability and safety. Its RoHS compliance makes it an eco-friendly choice for reliable connections. Purchase online today for quick delivery and professional-grade performance that your projects deserve.
Order your JST Series BM06BGHSTBTLFSN connector today and ensure secure, reliable connections for your small electronics and LCD projects.
Frequently Asked Questions
Where can I buy JST BM06BGHSTBTLFSN?
You can click on the BUY or RFQ button to purchase BM06BGHSTBTLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part BM06BGHSTBTLFSN?
You can download the BM06BGHSTBTLFSN datasheet or visit the JST website for support.
Who is the manufacturer of BM06BGHSTBTLFSN?
JST
