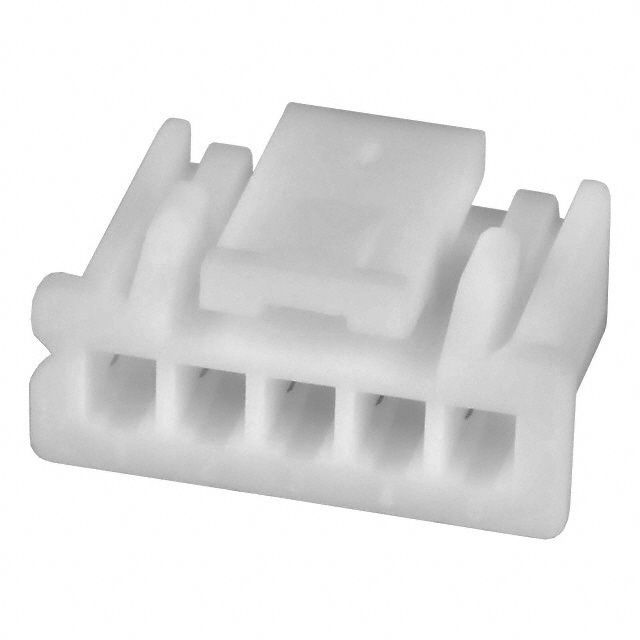

JST PAP05VS Connector Housing
This is a 5-position connector housing from the PA Series. It features a 2.00mm pitch, is designed for free-hanging installation, and uses crimp termination. The housing includes a latch lock for secure connection and comes in a natural color. Made of durable PA 66 with UL94V-0 rating, it is RoHS compliant, suitable for wire-to-board applications with a 3A current rating and 250V voltage rating. Its robust construction ensures reliable electrical contact and easy assembly for industrial wiring needs.
JST PAP05VS Connector Housing Specifications:
- Pitch: 2.00mm
- Number of circuits: 5
- Material: PA 66, UL94V-0, natural (white)
- Current rating: 3A AC/DC
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max, after testing/20mΩ max
- Insulation resistance: Initial/1000MΩ min
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #28 to #22
- Panel thickness: 0.5 to 2.0mm
- RoHS compliant
- Includes latch lock for secure connection
- Housing: Polyamide (PA 66), UL94V-0
- Color: Natural (white)
Buy the JST 05VS – Reliable Connector Housing for Industrial Applications
Purchase the JST 05VS connector housing online today to ensure reliable and secure electrical connections in your industrial wiring projects. Designed with a 2.00mm pitch and durable UL94V-0 rated PA material, it provides excellent contact stability, a locking latch, and RoHS compliance. Ideal for wire-to-board applications, this connector housing is easy to assemble, versatile, and engineered for long-term durability. Secure your wiring with high-quality JST connectors—order now for fast delivery and consistent performance.
Get JST 05VS today—built for precision and long-lasting durability for industrial wiring.
Frequently Asked Questions
Where can I buy JST PAP05VS?
You can click on the BUY or RFQ button to purchase PAP05VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PAP05VS?
You can download the PAP05VS datasheet or visit the JST website for support.
Who is the manufacturer of PAP05VS?
JST
