JST S20BPHDSSBLFSN Connector Header
The PHD Series 20-position side-entry male pin connector header ensures secure and reliable connections with through-hole soldering, detent lock for stability, and tin-plated contacts. Compatible with 28-22 AWG wires, it operates at 250V AC/DC, making it suitable for diverse electronic circuits. Its robust construction features UL94V-0 rated thermoplastic housing and copper alloy contacts, offering excellent electrical performance and durability. Designed for high-density applications, this connector provides easy assembly and stable connections in control panels, industrial equipment, and electronic systems, ensuring reliable performance in demanding environments.
JST S20BPHDSSBLFSN Connector Header Specifications:
- Current rating: 3A AC/DC
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: 10mΩ max. initial, 20mΩ max. after environmental testing
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.6mm
- Material: Copper alloy, tin-plated, reflow treatment
- Housing material: Glass-filled nylon UL94V-0, natural (white)
- RoHS compliant

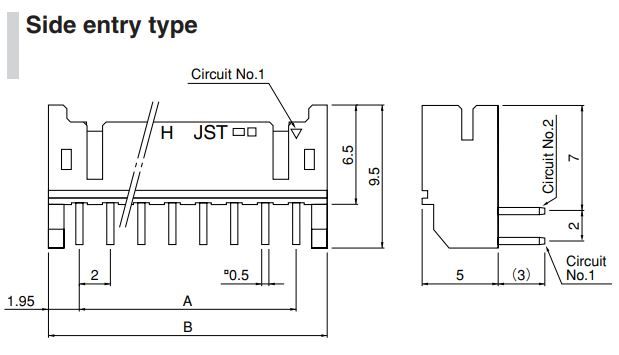

- Dimensions: Refer to manufacturer datasheet for exact dimensions
- Recognized: E60389, Certified: LR20812
Buy the JST S20BPHDSSBLFSN – Reliable 20-Position Side-Entry Connector for Industrial Applications
Purchase the JST S20BPHDSSBLFSN connector online today to ensure your electronic systems benefit from high-density, secure, and durable connections. This 20-position side-entry header features tin-plated contacts for excellent electrical performance, operates reliably within a wide temperature range, and supports wire sizes from AWG 28 to 22. Its robust construction with UL94V-0 rated thermoplastic housing guarantees safety and durability, making it ideal for industrial, commercial, and control applications. Order now for fast delivery and seamless integration into your projects.
Buy JST S20BPHDSSBLFSN now and experience unmatched reliability and performance with secure connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST S20BPHDSSBLFSN?
You can click on the BUY or RFQ button to purchase S20BPHDSSBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S20BPHDSSBLFSN?
You can download the S20BPHDSSBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of S20BPHDSSBLFSN?
JST
