Johnson-Cinch Connectivity Solutions 1080907001 Insulated Banana Jack

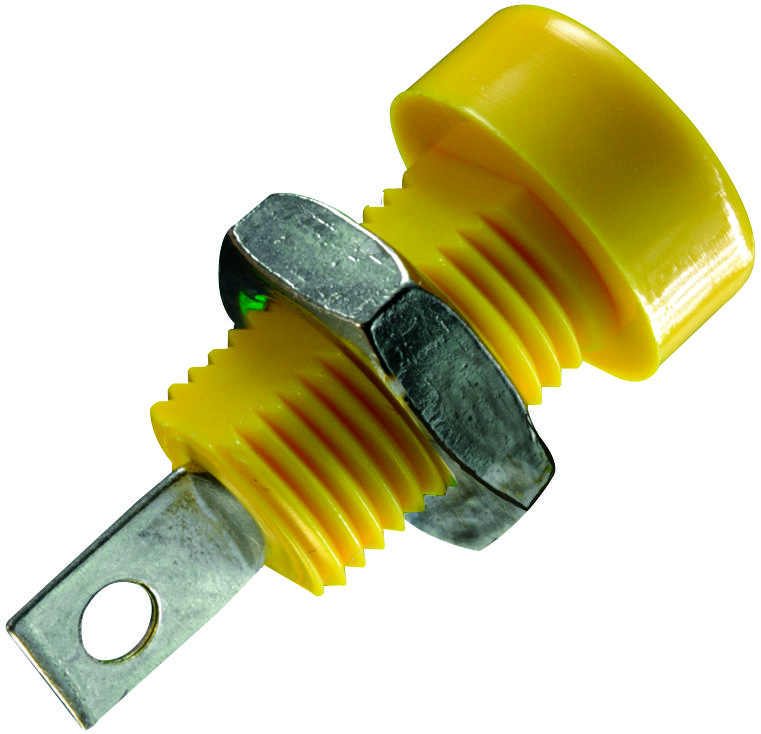

This yellow insulated solder terminal Banana Jack features a bright tin-plated brass body and a nylon 6/6 body that withstands panel thicknesses up to 8.8 mm. It includes a nickel-plated unassembled nut and has a keyed mounting system with double flats for secure installation. Accepting wires up to 16 gauge, it is rated for 15A current with a breakdown voltage of at least 7000 Vrms and a contact resistance not exceeding 0.010 ohms. The nylon material is UL-approved for self-extinguishing properties, making it suitable for aerospace, defense, and signal processing systems.
Johnson-Cinch Connectivity Solutions 1080907001 Insulated Banana Jack Specifications:
- Contact Material: Formed brass per QQ-B-626D
- Finish: Bright tin
- Body Material: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut (unassembled)
- Body Thread Stripping Torque: 6.0 lb.in (7 kg·cm)
- Panel Thickness: Up to 8.80 mm (0.343 inches)
- Current Rating: 15 amps
- Breakdown Voltage: Minimum 7000 Vrms
- Contact Resistance: 0.010 ohms maximum
- Contact-To-Panel Capacitance: 2.4 pF nominal
- Mounting: Keyed with double flats
- Wire Size: Accepts up to 16 gauge
- Material: Nylon UL approved, bright tin finish on brass
- Dimensions: Across flats 0.175 inches (4.44 mm)
- Application: Defense, aerospace, military, signal processing systems
Buy the Cinch Banana Jack – Reliable Insulated Solder Terminal for Industrial Applications
Purchase the Cinch Banana Jack insulated solder terminal online today—crafted with bright tin-plated brass and UL-approved nylon for safety. This reliable component features a keyed mounting system with double flats, accepts wires up to 16 gauge, and is rated for 15A current with a breakdown voltage of at least 7000 Vrms. Its robust nylon body withstands panel thicknesses up to 8.8 mm, ensuring secure installation in aerospace, defense, and signal processing applications. Order now for durable, high-performance connectivity solutions.
Get Cinch Banana Jack today—built for secure connections and long-lasting durability in critical systems.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1080907001?
You can click on the BUY or RFQ button to purchase 1080907001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1080907001?
You can download the 1080907001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1080907001?
Johnson-Cinch Connectivity Solutions
